Value List
When a value list relates to a field, a set of options organized under a specific criterion is defined. This allows the application user to display the possible values that the field can take.
From the modeler, new lists can be created, edited, and linked to entity fields.
To create a new list of values, you must click on the icon
.
A panel opens where the list name is entered, the application it belongs to is selected, and if it is specified to be sorted alphabetically, the descending order can be selected. Clicking the "Accept" button creates the value list, subsequently allowing the entry of new values.
The value list can be used in any other field of the same or another entity.
Property

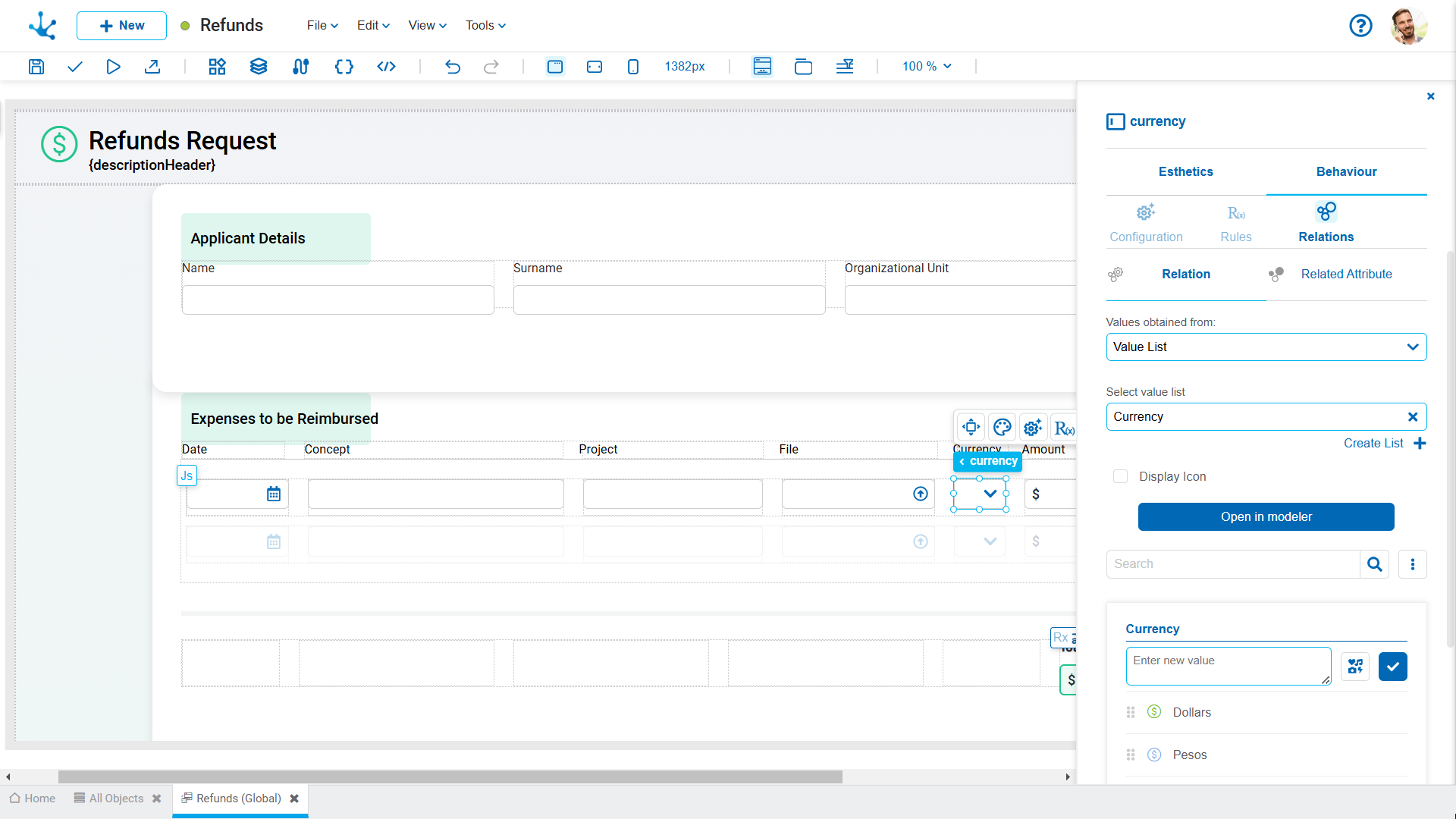

Select value list
It allows selecting a specific list from the set of existing lists with the option to filter the set by entering text into the search field located above the list.
Other Elements
Open in modeler
It allows using the value lists modeler for the definition, instead of the field properties panel.
Allows to filter values from the list based on the characters entered. If a list is very long it helps users to easily visualize the desired values.
Enables an option that allows to add the internal code to the list values.
Operations on Values
•
Allows adding each entered value to the list of values.
•
It is displayed if the list has the Icons property modeled. It allows to associate icons to the list values.
•Double click: Allows to modify a value in the list.
•Move: Allows to change the position of a value within the list by dragging the value with the mouse.
Hovering the cursor over each of the values entered, a set of icons is displayed and this allows to perform different operations.
•
Allows to delete a value from the list of values. Once deleted, it is displayed in gray and crossed out.
•
Allows to restore a previously deleted value.
Display the Selected Line
•
Hides the icons that are displayed.
•
Shows hidden icons.
