This element is used for data entry.



The element properties are represented by icons in its context menu, where its operations are also available.

Subtypes



When selecting the option "Field" from the icon Icono_BS_Elementos in the top toolbar, a list opens with the different subtypes of this element, which can be dragged into the modeling area.



Text

Number

Multiline

Date and Time

Options Group

Toggle

File



Text

 n-ModeladoFormsFacilidadesBarraIzq01

Alphanumeric (Default Type)

  Values are saved keeping the entered uppercase and lowercase letters.

Uppercase Alphanumeric

  Values are saved in uppercase.

Large Alphanumeric

  It works as a default alphanumeric, with the exception that it allows storing extensive texts (usually up to 4GB).

Rich Text

  It has the alphanumeric type features. It presents an extended editor that allows formatting a text by applying different styles, colors, sizes, etc.



Number

 n-ModeladoFormsFacilidadesBarraIzq02

Integer

It may contain integer values between -2147483648 and 2147483647 (stored in 32 bits).

Large Integer

It may contain integer values between -9223372036854775808 and 9223372036854775807 (stored in 64 bits).

Decimal

If the data type is decimal, the selection of the number of decimal places (2 to 5) is enabled.



ME-Campos-Decimales



File

 n-ModeladoFormsFacilidadesBarraIzq05

File in Database
It allows using user files as attachments to the entity.

File in Folder
The files are stored in the file structure of Deyel. This option is available only in the On-Premise version.

Classification of Properties



Properties are divided into two groups: esthetic properties and behavior properties.

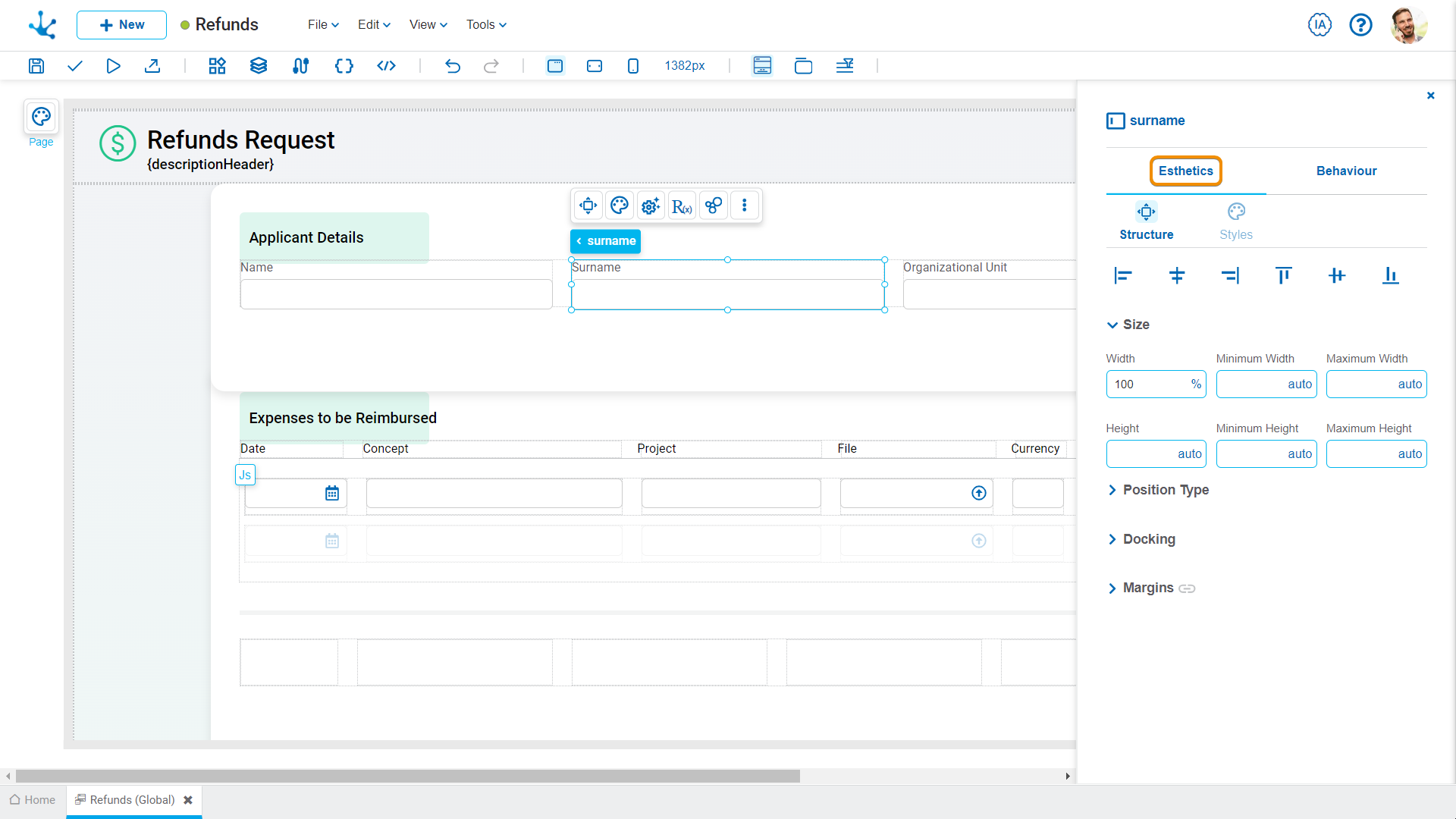

Esthetic Properties



In the esthetic properties panel, the following are grouped:



Structure Properties

Style Properties





ME-Campos-PropEstetica

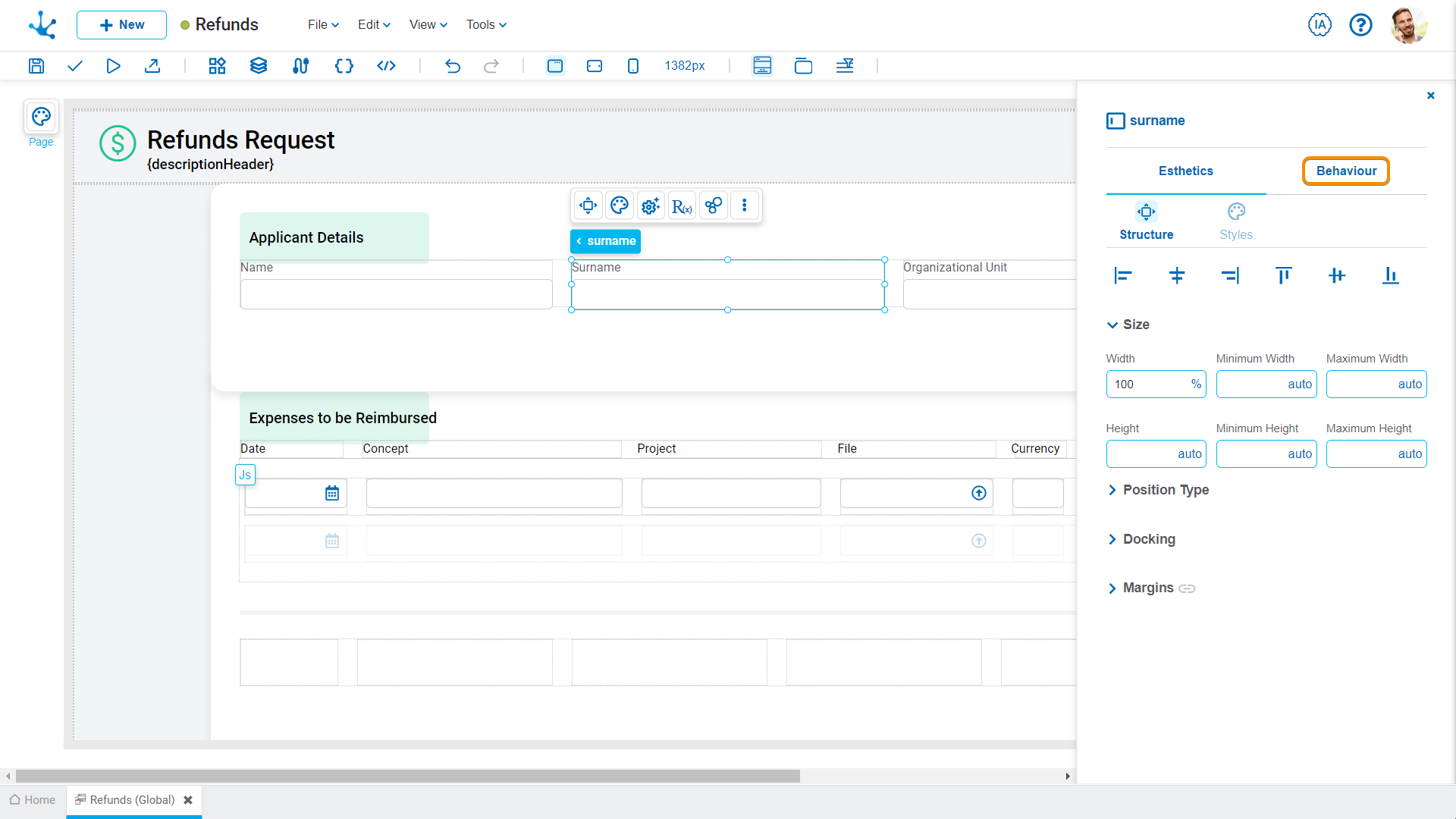

Behavior Properties



In the behavior properties panel, the following are grouped:



Configuration Properties

Rule Properties





ME-Campos-PropComportamiento
