The relation properties panel of an element opens when clicking the icon ME-Icono-Relaciones of its context menu.

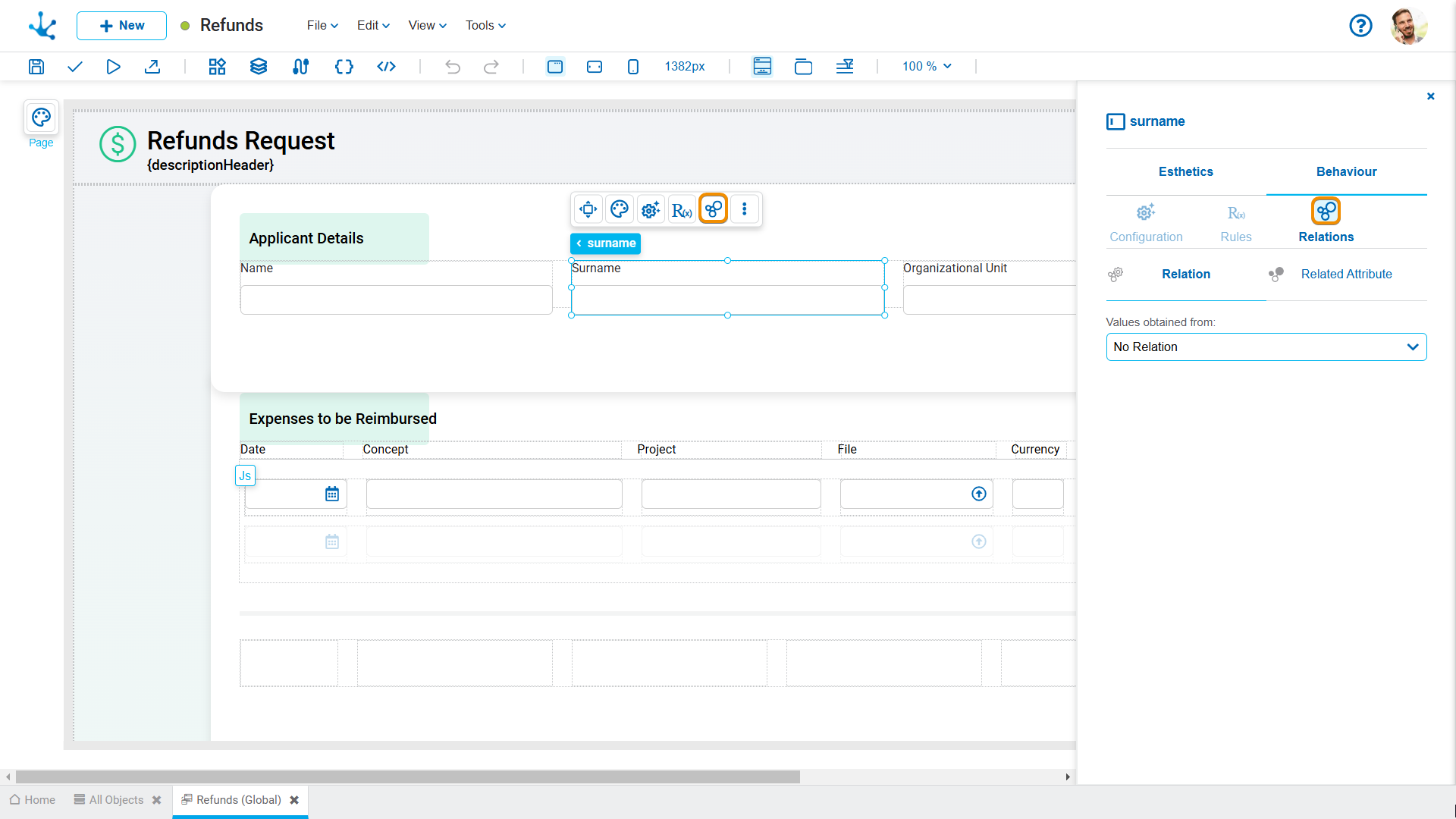

ME-PropiedadesRelaciones-001





Properties are divided into two groups, relation properties and related attribute properties.



Relation



A relation allows obtaining values from different sources for the element being modeled. Within the "Relation" tab, the property Values obtained from is defined, along with the specific settings for each type of source. If the element has no relation, the default option “No Relation” should be modeled.



Possible Values



No Relation

Entities

Value List

Rules



The relation is only valid for text-type fields.





ME-PropiedadesRelaciones-002





Atributo Relacionado



Un atributo relacionado indica que el valor del campo se recupera a partir del valor de un atributo de otra entidad. Se debe seleccionar una de las relaciones definidas en la página y luego indicar a qué atributo de la entidad relacionada se vincula.



Un campo puede estar modelado como atributo relacionado y a su la vez puede tener definida una relación a una entidad, lista de valores o regla. Esto permite que se recupere el valor del atributo relacionado en este campo y también se utilice la funcionalidad aportada por la relación.

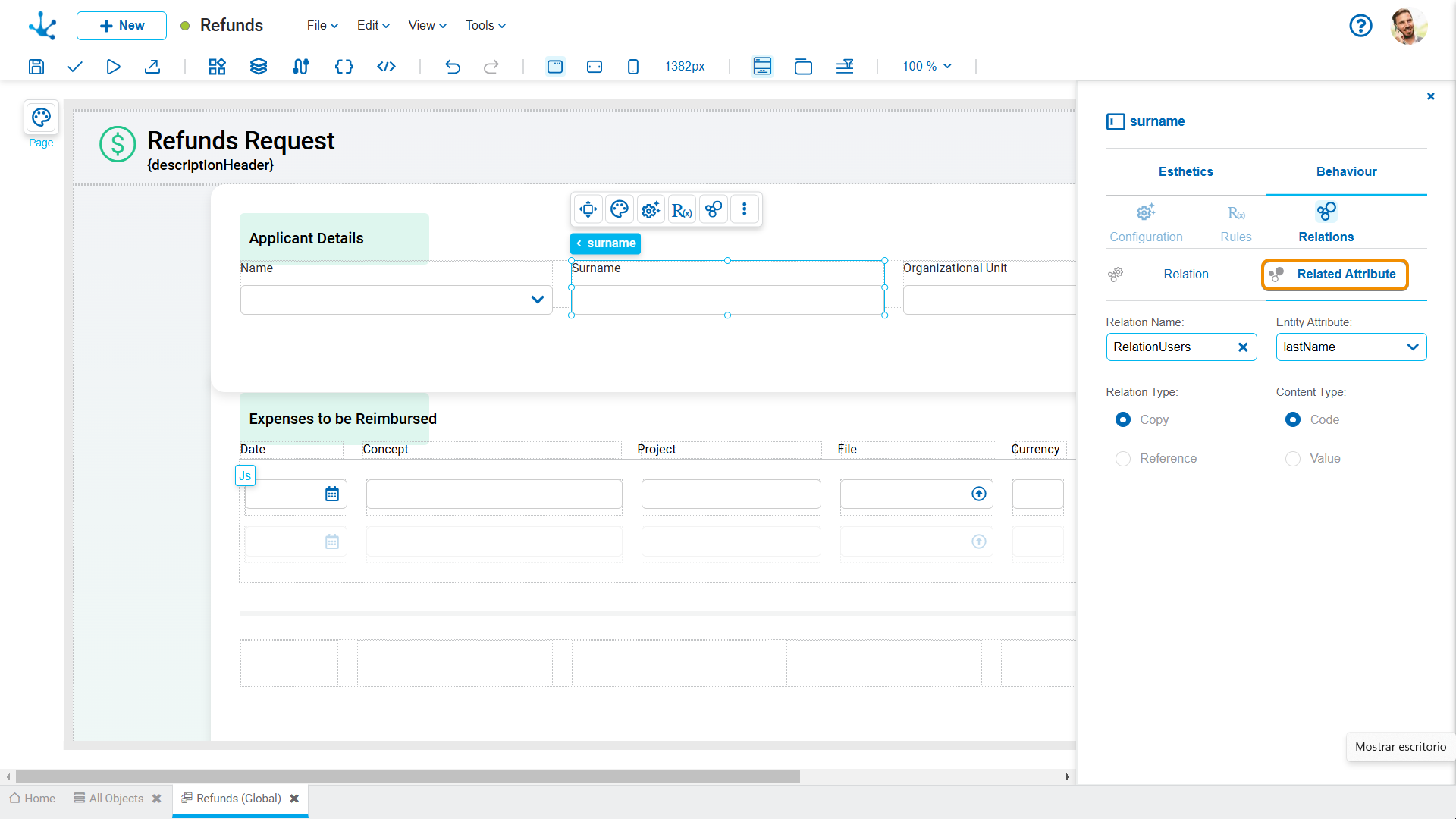

ME-PropiedadesRelaciones-003



Properties



Relation Name

The list of relations defined in the entity is displayed, allowing the selection of one of them.



Entity Attribute
The list of attributes of the selected entity compatible with the field type is displayed. Attributes can have a relation modeled with an entity, a value list, or a rule in the selected entity.



Relation Type

Copy

When this property is checked, once the retrieved value is uploaded, it does not automatically update even if the value of the related attribute changes.

  Reference

When this property is checked, the field value is subject to the current value of the related attribute, that is, the updated value is automatically displayed.



Content Type

The element content varies depending on whether the Code or Value property is checked when:

The entity attribute has a modeled relation.

The field has the option "Entity" selected in the Values Obtained from property.

Code

When this property is checked, if the relation is modeled with a:

Related entity, the identifier of the entity is displayed.

Value list, the value list code is displayed.

Rule, the code returned by the rule's execution is displayed.

Value

When this property is checked, if the relation is modeled with a:

Related entity, the short description of the entity is displayed.

Value list, the value list description is displayed.

Rule, the description returned by the rule's execution is displayed.
