Documentation 8.7

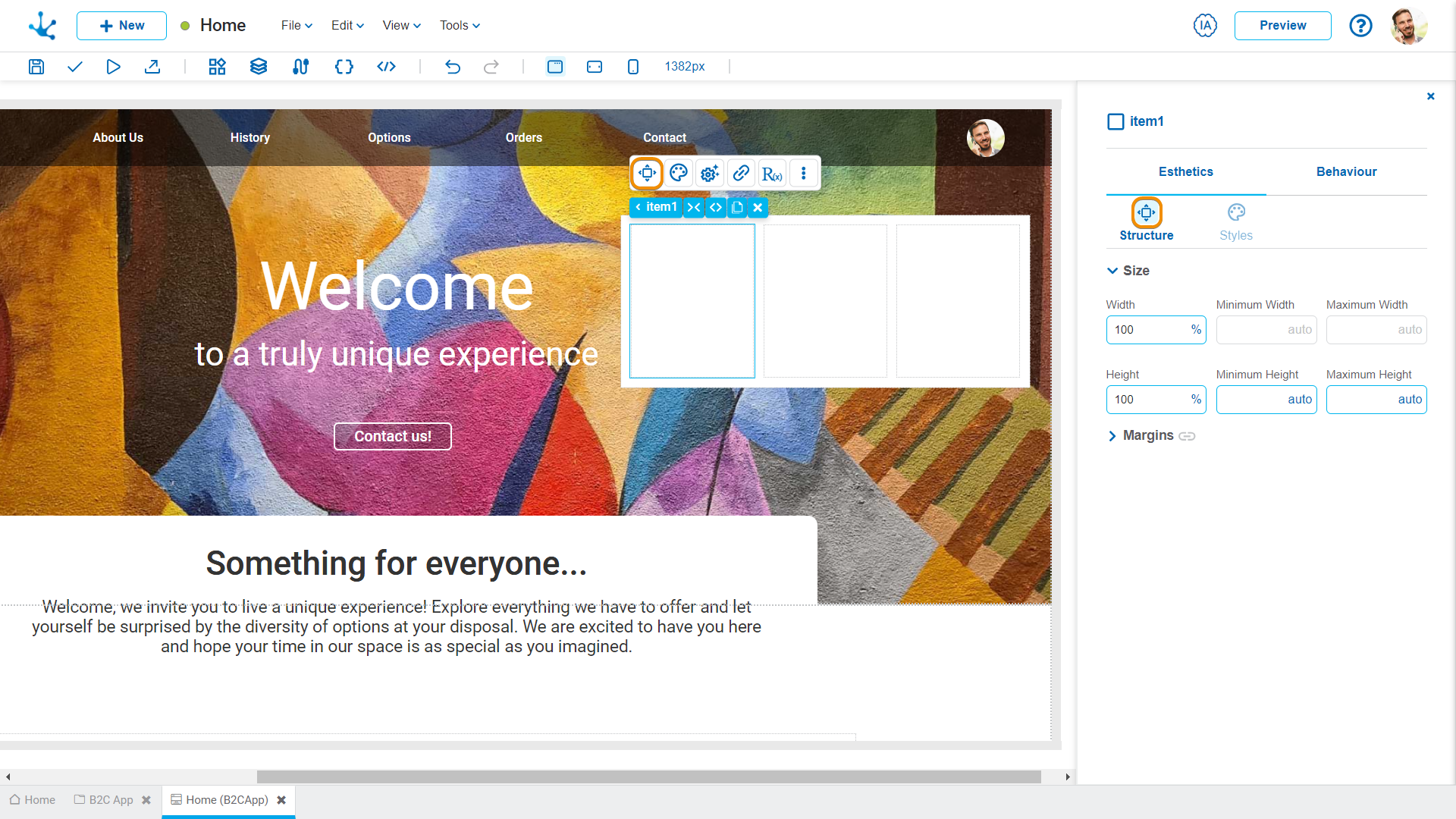

The structure properties panel of an element opens when selecting the icon PropiedadesEstructura of  its context menu.





MP-DiseñoItem-Estructura

Size



MPA-PropiedadesTamaño-001



All size properties can be expressed in pixels (px), percentage (%), viewport width (vw), and viewport height (vh). Additionally, for Width and Height properties, the “auto” option is added.

If selecting percentage (%) for the width and height properties, the size is calculated relative to the top element.

Margins

MPA-PropiedadesMargenes-001



Allows to define the distance among items and also from items to the borders of the containing element. It can be expressed in pixels (px), percentage (%), viewport width (vw), and viewport height (vh).



Top

Distance to the top border of the containing element.



Bottom

Distance to the bottom border of the containing element.



Left

Distance to the left border of the containing element or to the previous item.



Right

Distance to the right border of the containing element or to the following item.



iconobordes Allows the value entered in one of the margins to be copied to the other ones automatically.

iconomargenes Allows to indicate different values for each margin.
