Configuration Properties

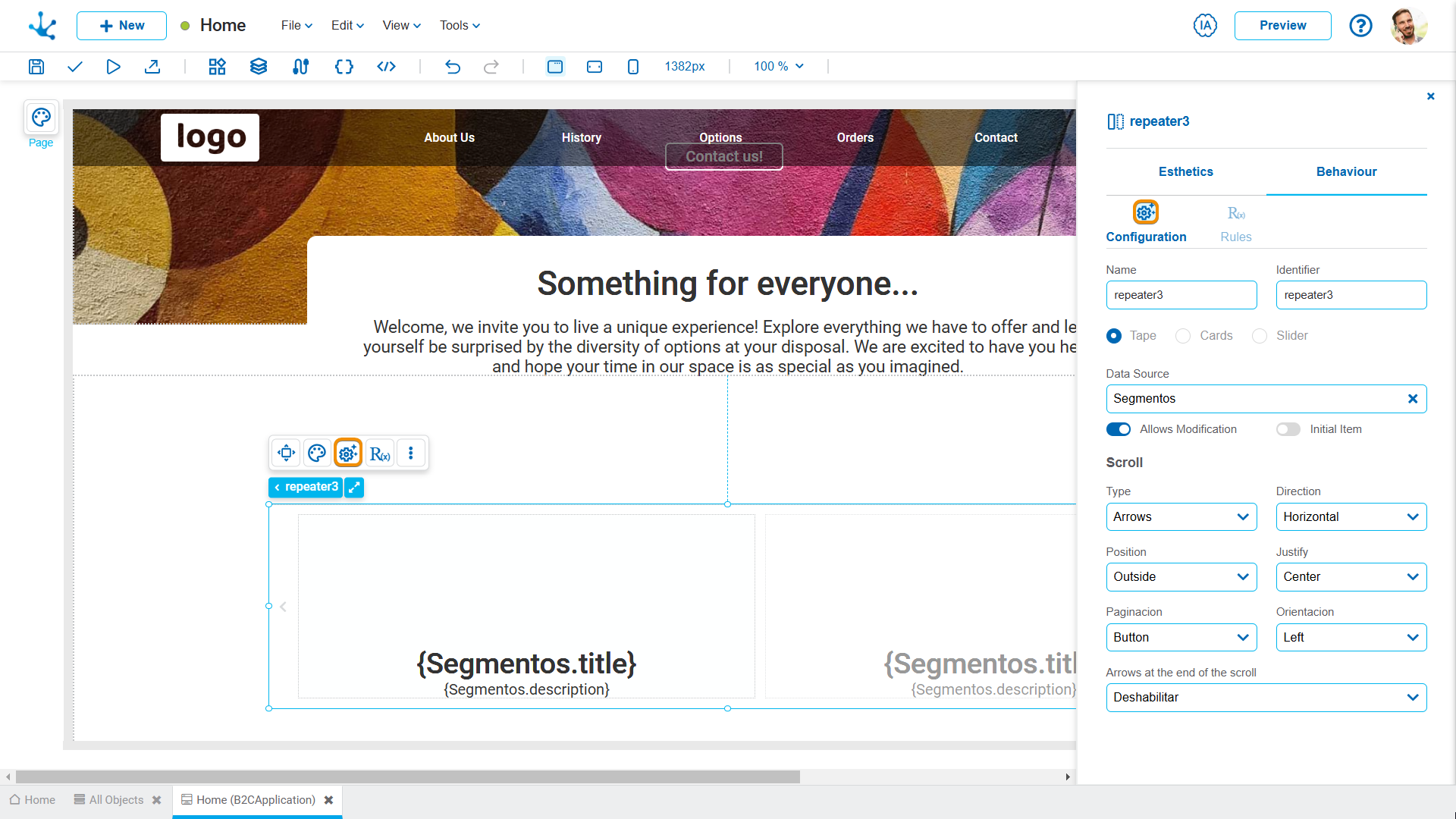

The configuration properties panel of an element opens when clicking the icon of its context menu.
Name
Name used to reference the element during modeling.
Identifier
Uniquely identifies the element. It is used in the Javascript SDK.
Items can be repeated in tape, cards, or slider format.
Tape
When the page is executed, the items scroll within the repeater as the forward and backward icons are pressed. The number of items initially displayed on the tape depends on the size of the repeater.
Data Source
Allows to select the form from which the data is retrieved to be displayed in the repeater.
Type
If the page is used from a desktop, the icons and that indicate the forward or backward movement of the items on the tape must be selected. If used from a touch breakpoint, the “None” option can be selected to perform the scrolling.
If the selected value is “Arrows” the enabled properties are: Position and Alignment.
Possible Values
•Arrows
•None
Direction
Allows to select the direction in which the items within the example are displayed.
Possible Values
•Horizontal
•Vertical
Position and Alignment
Select the position of the scroll icons within the repeater.
Possible Values for Position
•Top
•Bottom
•Inside Top
•Inside Bottom
Possible Values for Alignment
•Left
•Center
•Right
Position Type
It allows defining how cards are aligned within their container.
Possible Values
•Left
•Centered
•Right
Sliding Time
It allows defining the interval in seconds for the automatic transition between cards.
Infinite Sliding
It allows the card type repeater to slide continuously, returning to the beginning once the end is reached.
Possible Values
•If the “Inside” or “Outside” values are selected for the Position property, the possible values of the Alignment property are: “Top”, “Center”, “Bottom”.
•If the “Top” or “Bottom” values are selected for the Position property, the possible values of the Alignment property are: “Left”, “Center”, “Right”.
Cards
Unlike the tape, the items paginate within the repeater as the forward and backward icons are pressed. The number of items that are initially displayed in the repeater depends on the values modeled in the Columns and Rows.
Data Source
Allows to select the form from which the data is retrieved to be displayed in the repeater.
Columns
It allows defining the number of columns in the repeater.
Rows
It allows defining the number of rows in the repeater.
Type
It allows selecting whether the icons or are displayed, that indicate the forward or backward movement of the items in the repeater.
Possible Values
•Dots
•Arrows
Direction
Allows to select the direction in which the items within the example are displayed.
Possible Values
•Horizontal
•Vertical
Position and Alignment
Select the position of the scroll icons within the repeater.
Possible Values for Position
•Top
•Bottom
•Inside Top
•Inside Bottom
Possible Values for Alignment
•Left
•Center
•Right
Position Type
It allows defining how cards are aligned within their container.
Possible Values
•Left
•Centered
•Right
Sliding Time
It allows defining the interval in seconds for the automatic transition between cards.
Infinite Sliding
It allows the card type repeater to slide continuously, returning to the beginning once the end is reached.
Possible Values for Position
•Top
•Bottom
•Inside Top
•Inside Bottom
Possible Values for Alignment
•Left
•Center
•Right
