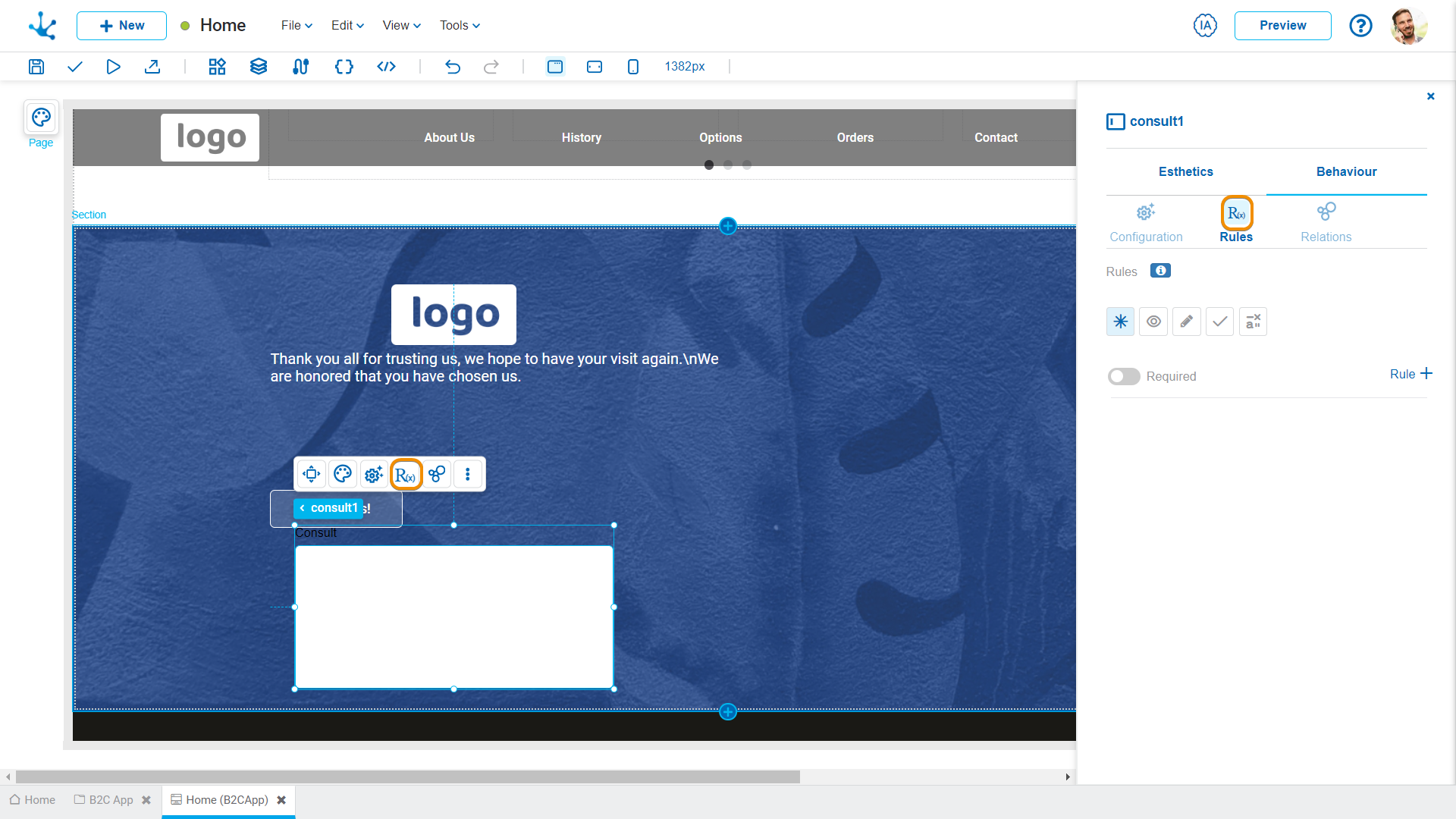

The rule properties panel of an element opens when clicking the icon MPA-IconoRegla of its context menu.





MP-PropiedadesReglas-006

Properties



Rules

Embedded rules on behavior, validation and calculation can be defined, associated with an element, by using the wizard (ctrl + space).

65S4_img6 Shows syntax examples for writing the rules.



65S4_v2_img10

Required

Indicates whether the element is required on the page.

toggles_img1  Required   toggles_img3  Not required (default)

65S4_img11 Opens an edit area where a rule to determine the required condition can be defined. If a rule is defined, the icon is displayed with light blue borders.



65S4_v2_img9

Visible

Indicates whether the element is visible. If this property is not checked, the element is not displayed in the page.
toggles_img1  Visible (default)   toggles_img3 Not visible

65S4_img11 Opens an edit area where a rule to determine the visibility condition can be defined. If a rule is defined, the icon is displayed with light blue borders.



65S4_v2_img5

Editable

Indicates if the element is editable. If this property is not checked, the user cannot enter or modify values in the element.

toggles_img1 Editable (default) toggles_img3 Not editable

65S4_img11 Opens an edit area where a rule to determine the editability condition can be defined. If a rule is defined, the icon is displayed with light blue borders.



65S4_v2_img8

Validation

65S4_img11 Opens an edit area where you can define the condition that determines if the element value is correct or not. It is possible to define more than one rule. If rules are defined, the icon is displayed with light blue borders.



65S4_v2_img7

Calculation

65S4_img11 Opens an edit area where you can define the expression to be executed to calculate the element value. If a rule is defined, the icon is displayed with light blue borders.



Operations when defining the rule:



icon-mod-proc-jxxf3489fhdj

Saves the new or modified rule

icon-mod-proc-d6f4xxx6dfhjfdj

Cancels the operation



Operations once the rule is defined:



icon-mod-proc-xxcf5hfs89fhdj

Edits the existing rule

iconoTACHO_AZUL

Deletes the rule
