Documentation 8.8

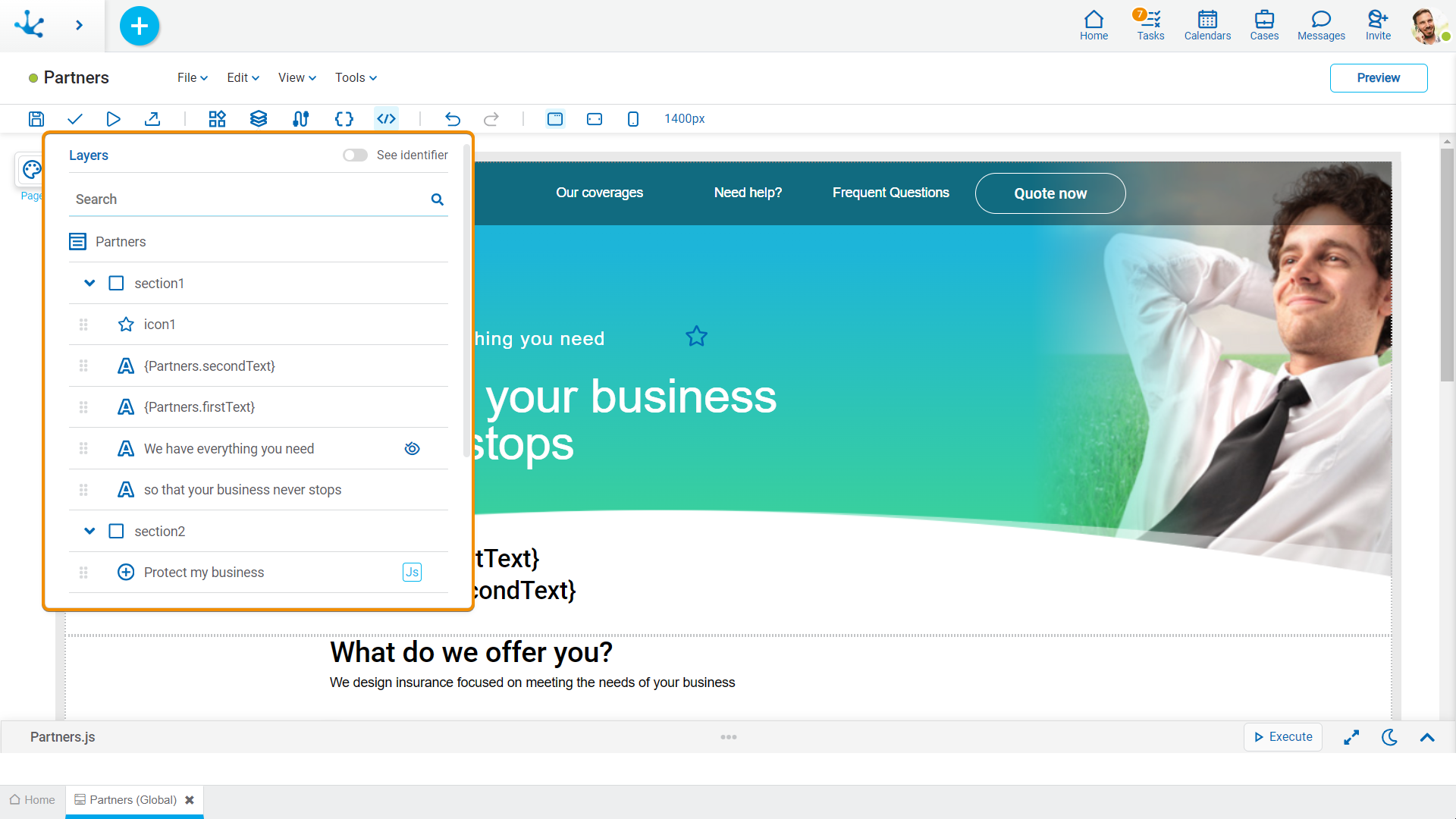

It allows to display the page elements organized hierarchically. First, sections are displayed, ordered as they are located on the page and within each one, all its elements can be seen.





MPA-Capas-001

Operations

Locate Elements



Hovering over an element in the layers panel highlights such element in the modeling area, making it easier to identify without the need to select it. If selected, in addition to being highlighted, its context menu is displayed.



When an element is selected in the modeling area and the layers panel is opened, the chosen element is displayed in the hierarchy.

Filter Elements



When performing a search, matching elements are highlighted in the layers menu, while those that do not meet the search criteria collapse their hierarchical display, if they had one.

Locate and Show Hidden Elements



Hidden elements on the page are displayed in gray in the layers panel next to the icon iconoOcultar. When pressing this icon, the element becomes visible. When clicking on the name instead, the element is temporarily displayed in the modeling area.

Elements Panel



Selecting the icon icono3puntos displays a panel with different options.



MPA-PropiedadesCapasMenu-001

Reorder Elements



It allows to easily order the elements within the same superior element, dragging them in the list to the desired position.
