Documentation 8.7

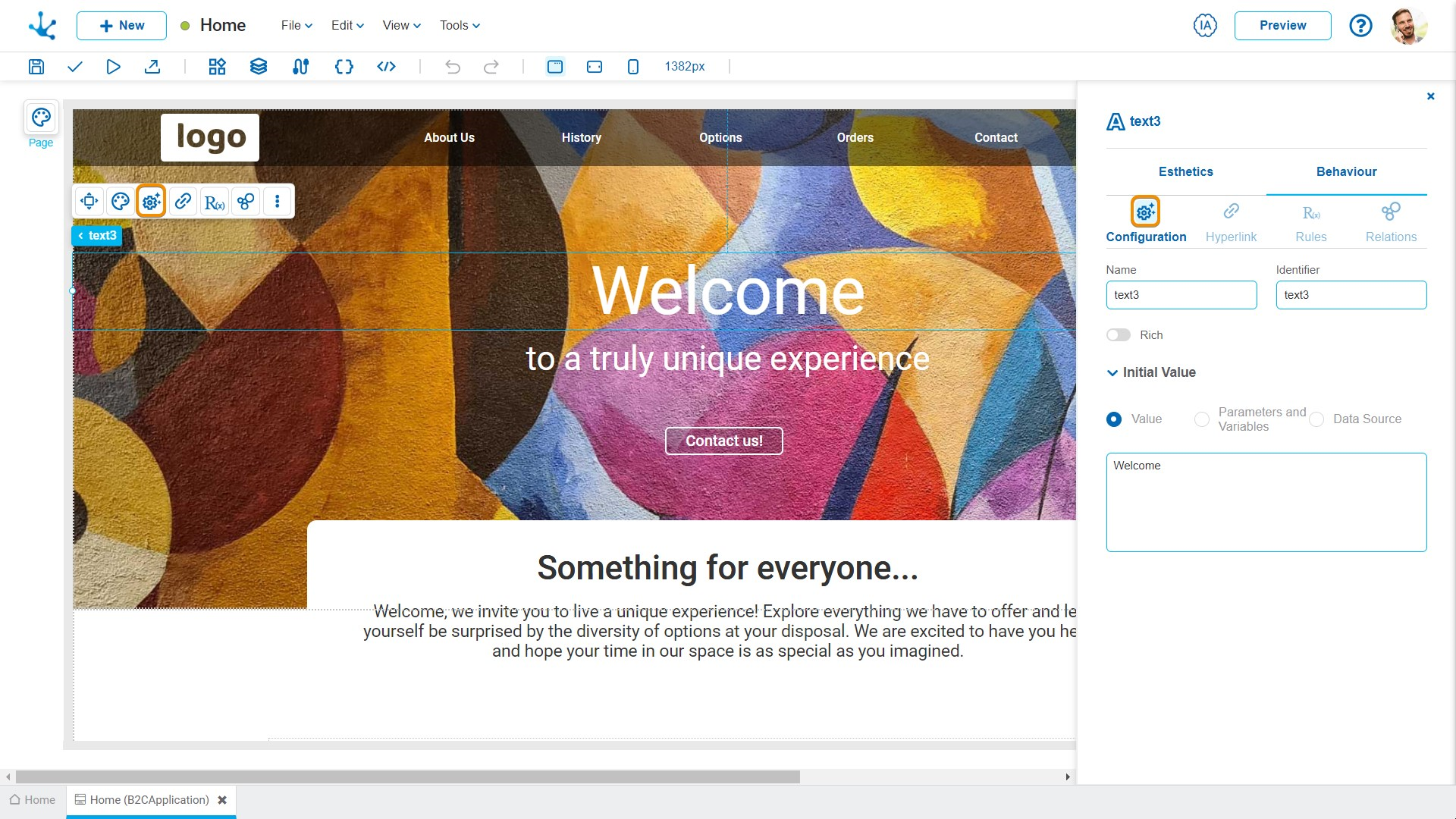

The configuration properties panel of an element opens when clicking the icon iconoConfiguracion of its context menu.





MP-Texto-Configuracion-001





Name

Name used to reference the element during modeling.



Identifier

Uniquely identifies the element. It is used in the Javascript SDK.

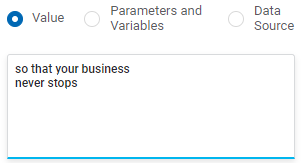

Initial Value



It allows selecting the source of the element's content and optionally defining the text style.



MPA-PropiedadesValor-001



Value

Allows to enter a text that is displayed in the element.

Parameters and Variables



MPA-PropiedadesParametro-001



Parameters and Variables

Allows to select a parameter or a variable from the page. Its value is displayed in the element.

Data Source



MPA-PropiedadesFuenteDatos-001



Data Source

Allows to select a data source that was previously defined on the page.



Fields

Allows to select a field from those retrieved in the chosen data source. Its value is displayed in the element.

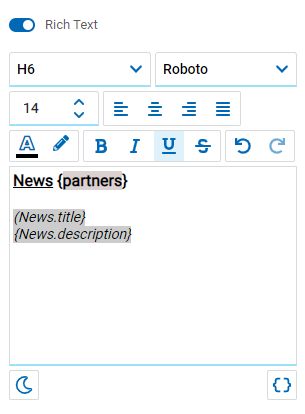

Rich Text



It allows defining formats that modify the appearance of the text element's content. Different styles can be combined in the same text, some parts can be highlighted, and more than one data source, parameter, or variable can be added.





MPA-PropiedadTextoEnriquecido-001



CM0079~1_img3 Changes the style of the code editor to dark mode.

CM0079~1_img4 Changes the style of the code editor to the previous mode.

IconoFuentedeDato It allows the incorporation of the content of variables, parameters, and information from different data sources into the text.
