Documentation 8.7

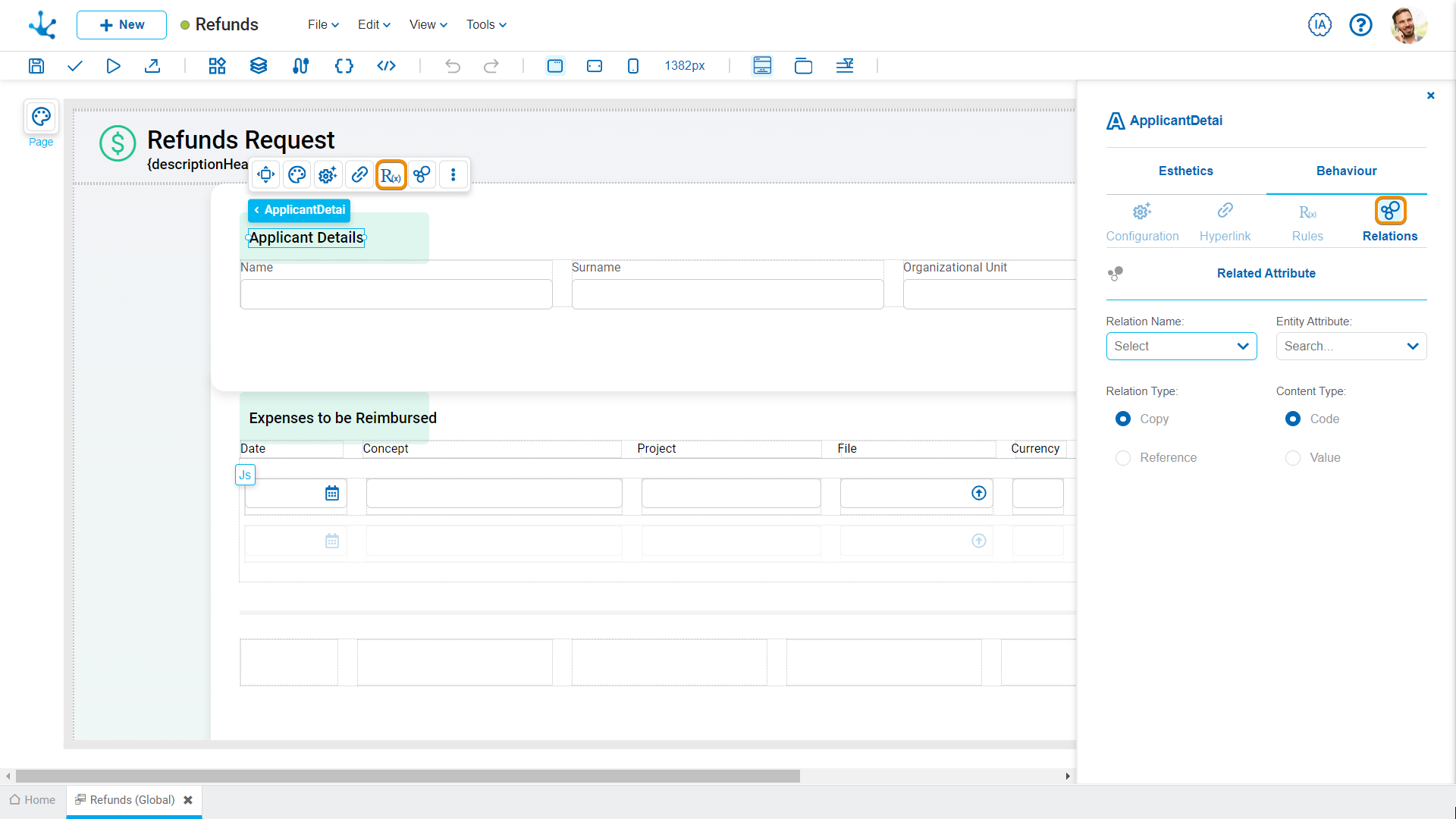

The relation properties panel of an element opens when clicking the icon ME-Icono-Relaciones of its context menu.





ME-Texto-Relaciones

Properties



Relation Name

The list of relations defined in the entity is displayed, allowing the selection of one of them.



Entity Attribute
The list of attributes of the selected entity compatible with the field type is displayed. Attributes can have a relation modeled with an entity, a value list, or a rule in the selected entity.



Relation Type

Copy

When this property is checked, once the retrieved value is uploaded, it does not automatically update even if the value of the related attribute changes.

  Reference

When this property is checked, the field value is subject to the current value of the related attribute, that is, the updated value is automatically displayed.



Content Type

The element content varies depending on whether the Code or Value property is checked when:

The entity attribute has a modeled relation.

The field has the option "Entity" selected in the Values Obtained from property.

Code

When this property is checked, if the relation is modeled with a:

Related entity, the identifier of the entity is displayed.

Value list, the value list code is displayed.

Rule, the code returned by the rule's execution is displayed.

Value

When this property is checked, if the relation is modeled with a:

Related entity, the short description of the entity is displayed.

Value list, the value list description is displayed.

Rule, the description returned by the rule's execution is displayed.
