Configuration Properties

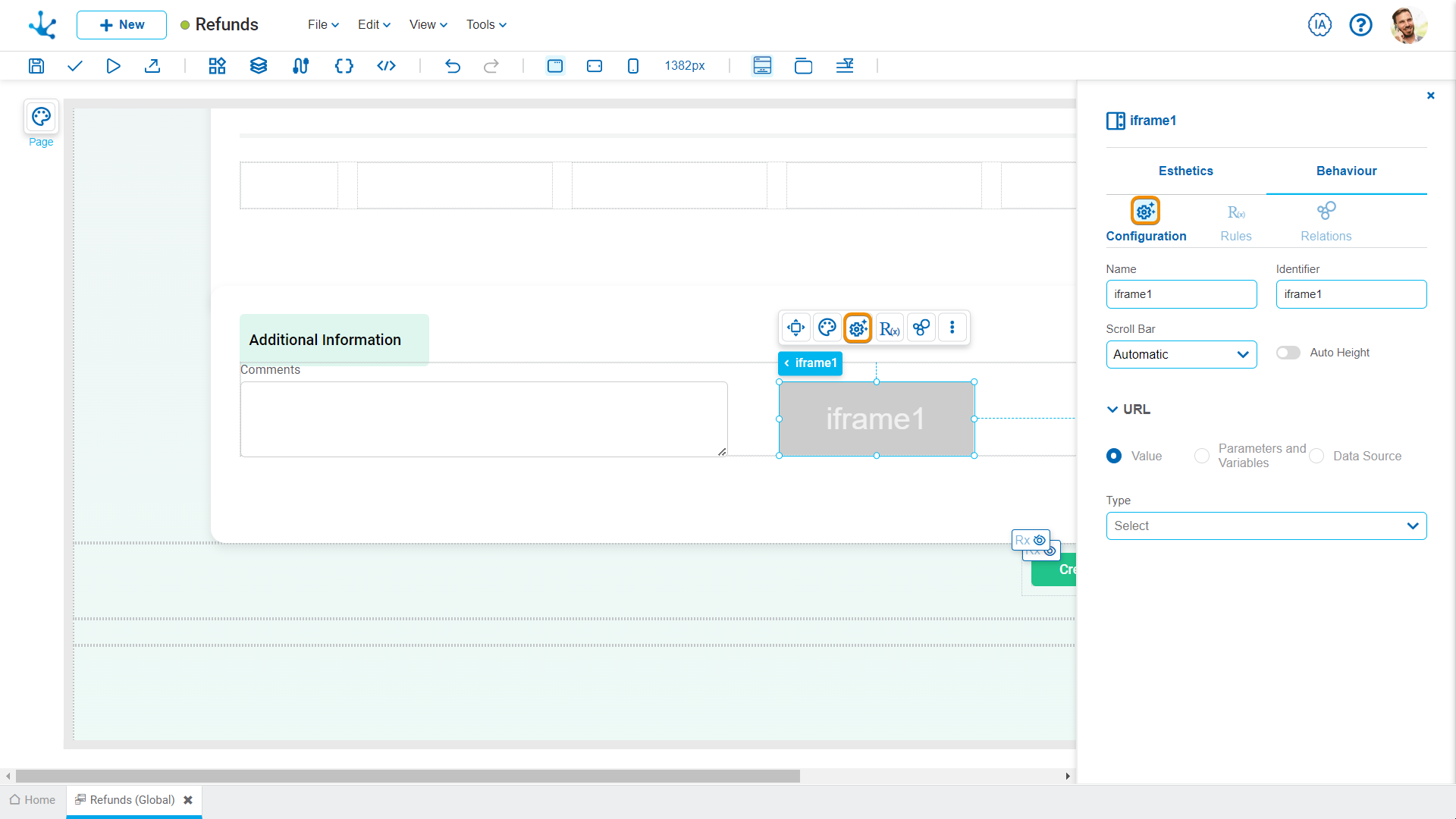

The configuration properties panel of an element opens when clicking the icon
of its context menu.
Properties
Name
Name used to reference the element during modeling.
Identifier
Uniquely identifies the element. It is used in the Javascript SDK.
Scroll
Auto Height
It allows the height of the iframe to adjust to the size of its content if the content exceeds the size of the iframe. If this property is not checked, the different values of the Scroll Bar property can be selected.
Scroll Bar
Indicates whether the scroll on the element is displayed: always, never, or according to the size of the iframe content.
URL
Allows to select the source of the element's content.
Value
Type
It allows selecting the type of object to show in the iframe, it can be a Deyel object or a link to an external web page. Depending on the type selected, different properties are enabled to be completed.
•Page
Page
It allows selecting the external page that is displayed in the iframe. Once it is selected, its parameters are displayed if it has any.
•Deyel Page
Deyel Page
It allows selecting the Deyel page displayed in the iframe. Once it is selected, its parameters are displayed if available, or else a parameter can be added.
•Form
Form
It allows selecting a name for the form displayed on the home page. Once selected, its parameters are displayed if available, or else a parameter can be added.
Operation
It allows selecting whether to view the creation of an instance or the form grid.
•Process
Process
It allows selecting the name of the process that is executed in the iframe. Once selected, its parameters are displayed if available, or else a parameter can be added.
Operation
Indicates that the creation of a case is displayed.
•Link
Link
It allows the entry of the link to the page that executes in the iframe.

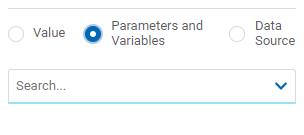

Parameters and Variables
Parameters and Variables
Allows to select a parameter or a variable from the page. Its value is displayed in the element.

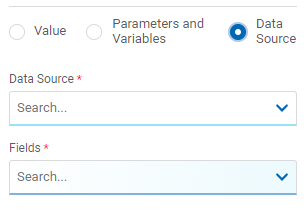

Data Source
Data Source
Allows to select a data source that was previously defined on the page.
Fields
Allows to select a field from those retrieved in the chosen data source. Its value is displayed in the element.
