Documentation 8.7

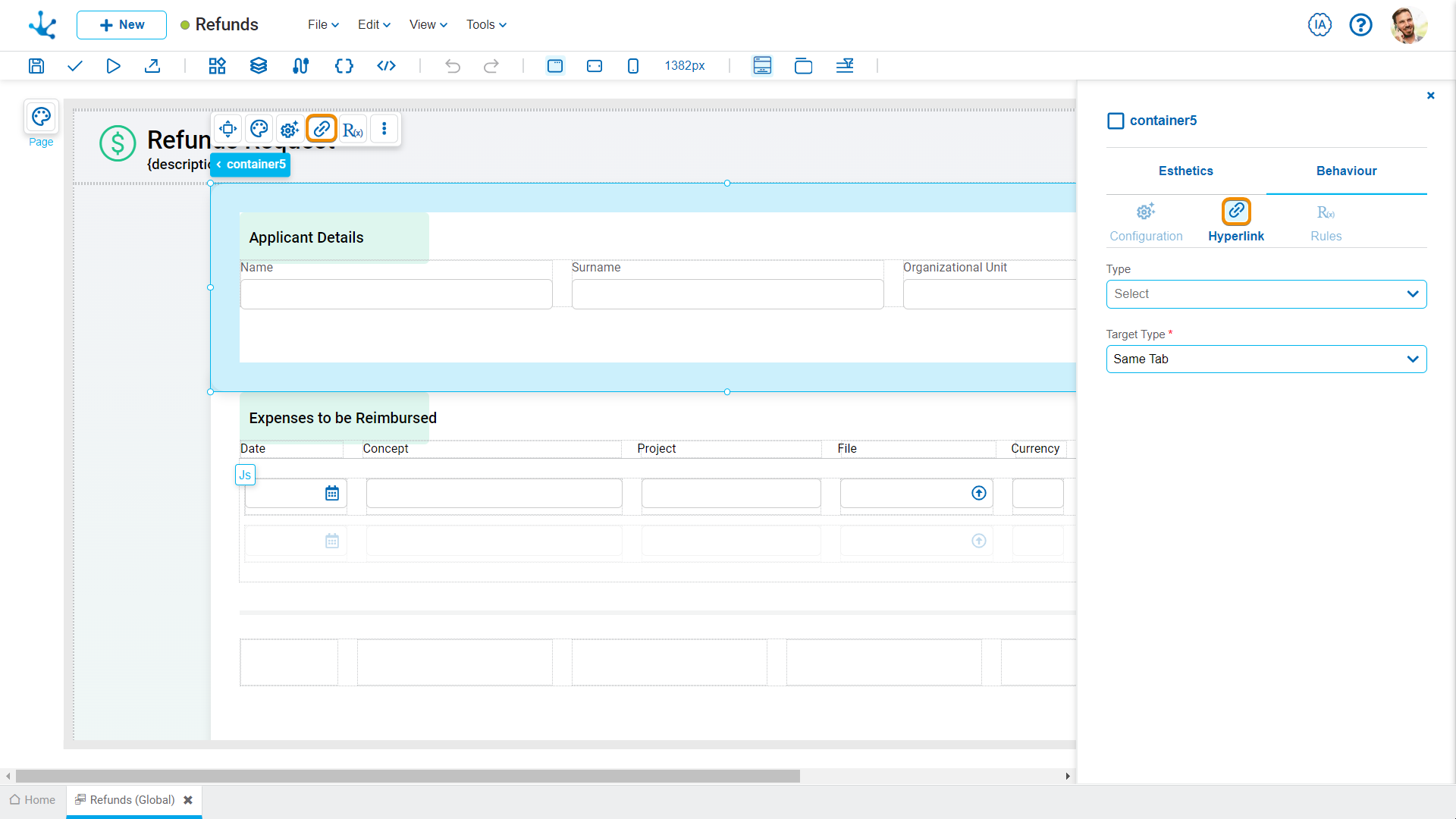

The hyperlink properties panel of an element opens when clicking the icon iconohipervinculo of its context menu.





ME-Cont-Hipervinculo





Define the behavior of the element when selecting it. Different properties are enabled depending on the type of object selected.

Page





MPA-PropiedadesHipervínculo-018





Page





MPA-PropiedadesHipervínculo-018





Page

The pages modeled in the environment are displayed.



Destination Type

The available options for opening the object are displayed.



Possible Values



Same Tab

New Window

Modal: selecting this option enables additional properties.

      Modal Horizontal Size

        Defines its width.

      Modal Vertical Size

        Defines its height.

Iframe: selecting this option enables an additional property.

      Destination Iframe

        Expands the iframes previously defined on the page.

Superior Iframe: defines the iframe that contains the specific element where the hyperlink is being applied as destination.

Parent Iframe: defines the iframe that contains the entire current object as destination



Parameters

If there are parameters, their value can be specified with text, parameters and variables or data source.

Deyel Page





MPA-PropiedadesHipervínculo-019





Deyel Page





MPA-PropiedadesHipervínculo-010



Deyel Page

The pages belonging to Deyel are displayed.



Destination Type

The available options for opening the object are displayed.



Possible Values



Same Tab

New Window

Modal: selecting this option enables additional properties.

      Modal Horizontal Size

        Defines its width.

      Modal Vertical Size

        Defines its height.

Iframe: selecting this option enables an additional property.

      Destination Iframe

        Expands the iframes previously defined on the page.

Superior Iframe: defines the iframe that contains the specific element where the hyperlink is being applied as destination.

Parent Iframe: defines the iframe that contains the entire current object as destination



Parameters

Allows sending parameters to the selected object type.

Form





MPA-PropiedadesHipervínculo-020





Entities and Forms





MPA-PropiedadesHipervínculo-011



Entities and Forms

The entities and forms modeled in the environment are displayed.



Operation

Defines the operation made when selecting the object.



Destination Type

The available options for opening the object are displayed.



Possible Values



Same Tab

New Window

Modal: selecting this option enables additional properties.

      Modal Horizontal Size

        Defines its width.

      Modal Vertical Size

        Defines its height.

Iframe: selecting this option enables an additional property.

      Destination Iframe

        Expands the iframes previously defined on the page.

Superior Iframe: defines the iframe that contains the specific element where the hyperlink is being applied as destination.

Parent Iframe: defines the iframe that contains the entire current object as destination



Parameters

Allows sending parameters to the selected object type.

Process





MPA-PropiedadesHipervínculo-021





Process





MPA-PropiedadesHipervínculo-012



Process

The processes modeled in the environment are displayed.



Operation

Defines the operation made when selecting the object.



Destination Type

The available options for opening the object are displayed.



Possible Values



Same Tab

New Window

Modal: selecting this option enables additional properties.

      Modal Horizontal Size

        Defines its width.

      Modal Vertical Size

        Defines its height.

Iframe: selecting this option enables an additional property.

      Destination Iframe

        Expands the iframes previously defined on the page.

Superior Iframe: defines the iframe that contains the specific element where the hyperlink is being applied as destination.

Parent Iframe: defines the iframe that contains the entire current object as destination



Parameters

Allows sending parameters to the selected object type.

Link





MPA-PropiedadesHipervínculo-022





Link





MPA-PropiedadesHipervínculo-013



Link

Allows to enter any link.



Destination Type

The available options for opening the object are displayed.



Possible Values



Same Tab

New Window

Modal: selecting this option enables additional properties.

      Modal Horizontal Size

        Defines its width.

      Modal Vertical Size

        Defines its height.

Iframe: selecting this option enables an additional property.

      Destination Iframe

        Expands the iframes previously defined on the page.

Superior Iframe: defines the iframe that contains the specific element where the hyperlink is being applied as destination.

Parent Iframe: defines the iframe that contains the entire current object as destination

Element





MPA-PropiedadesHipervínculo-023





Element



MPA-PropiedadesHipervínculo-014



Element

The modeled elements in the object are displayed.



Operation

Defines the operation made when selecting the element.



Behaviour

Establishes the transition of the animation. It is only modelable if the "Focus" operation was selected.



Possible Values



Auto

Smooth



Vertical Scroll

It is only modelable if the "Focus" operation was selected.

Possible Values



Start: Moves to the start of the selected element.

Closest: Moves to the closest position to the selected element from the element the event fires.

Center: Moves to the center of the selected element.

End: Moves to the end of the selected element.

Back





MPA-PropiedadesHipervínculo-033





Back





MPA-PropiedadesHipervínculo-024



It allows associating the event to go back in the browser to the element.
