Documentation 8.7

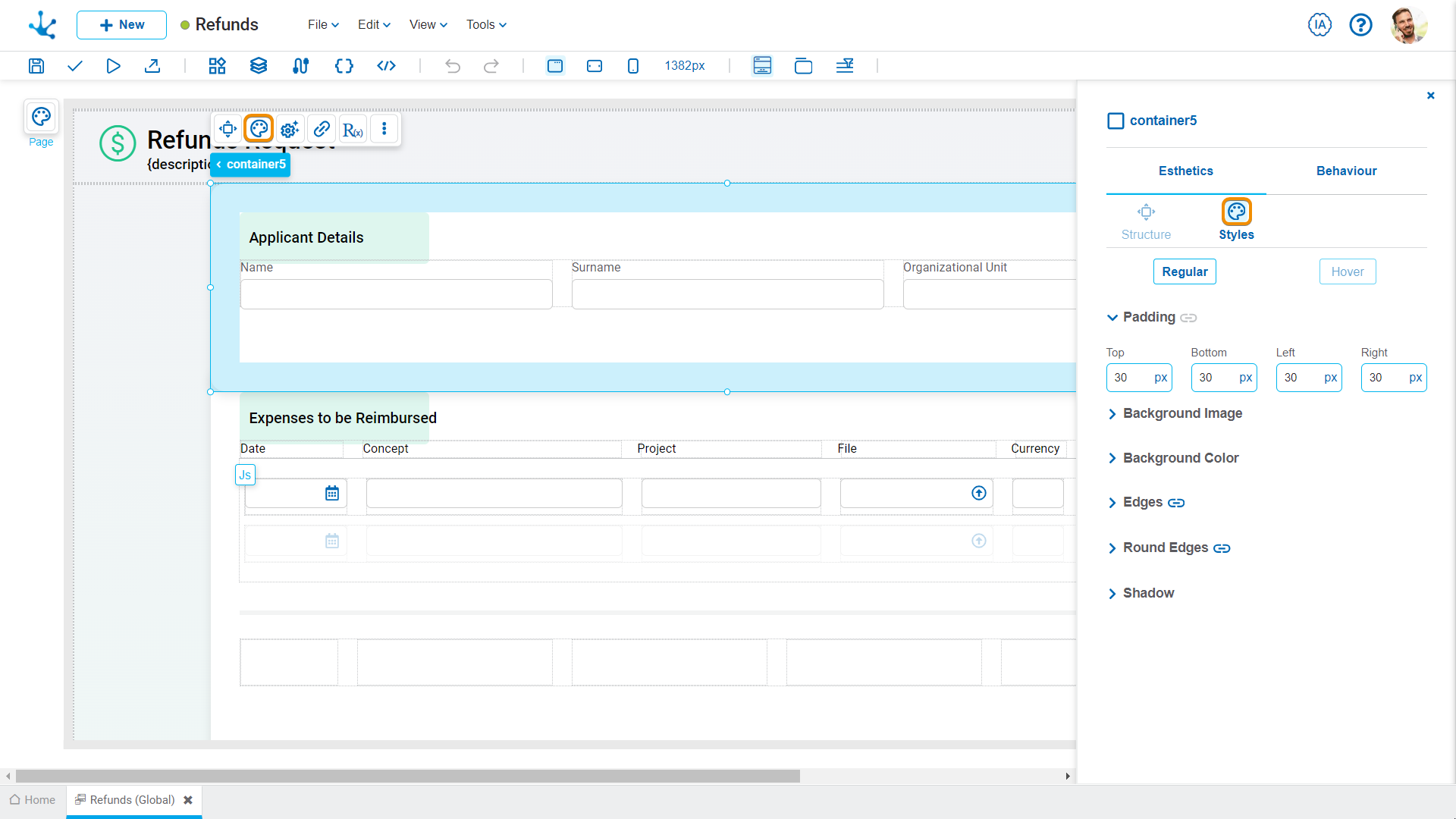

The style properties panel of an element opens when selecting the icon PropiedadesEstilo of its context menu.





ME-Cont-Estilo





This type of element may take different states and for each of them different values for its properties may be modeled.



MPA-PropiedadesRegular-001



Regular: The mouse pointer is not over the element.

Over: The mouse pointer is over the element.

Padding

MPA-PropiedadesEspacioRelleno-001



All padding space properties allow to create a space around the element borders (top, bottom, sides) and its content. The padding space configured is inward, while the margin is configured relative to a top element. It can be expressed in pixels (px), percentage (%), viewport width (vw), and viewport height (vh).



iconobordes Allows values entered in one of the paddings to be copied to the other ones automatically.

iconomargenes Allows to indicate different values for each padding.

Background Image



MPA-PropiedadesImagenFondo-001



Allows to add a background image to the element.



Selected

An image can be uploaded from the computer where it is being modeled.



Size



Possible Values



Cover

Content

Auto



Repeat



Possible Values



Repeat

Repeat Hor.

Repeat Vert.

Spacing

Rounded

Do Not Repeat



Horizontal and Vertical Position



Possible Values



Center

Left

Right

Background Color



It allows to model a background color for the element, it can be solid or gradient and different properties are defined for each one.



Solid





MPA-PropiedadesColor-001



This option enables not only to select the color from a palette but also to define the degree of transparency.





MPA-PropiedadesEstilo-018





Gradient



MPA-PropiedadesEstilo-020



This option enables to select not only the color from a palette but also to define its opacity and intensity according to the selected angle.





MPA-PropiedadesEstilo-019

Edges

MPA-PropiedadesBordes-001



It allows to define the style of borders. Each one has its type, width, color and opacity defined, the latter as a percentage.



iconobordes Allows the value entered in one of the borders to be copied to the other ones automatically.

iconomargenes Allows to indicate different values for each border.

Round Edges



MPA-PropiedadesBordesRed-001



It allows to define the round edges at the corners of elements.

It can be expressed in pixels (px), percentage (%), viewport width (vw), and viewport height (vh).



iconobordes Allows the value entered in one of the borders to be copied to the other ones automatically.

iconomargenes Allows to indicate different values for each border.

Shadow



MPA-PropiedadesSombra-002



Allows to define a shadow effect around the element.



Horizontal

Horizontal size of the shadow to the right of the element. It can be expressed in pixels (px), percentage (%), viewport width (vw), and viewport height (vh).



Vertical

Vertical size of the shadow below the element. It can be expressed in pixels (px), percentage (%), viewport width (vw), and viewport height (vh).



Blur

The greater this value is, the greater and lighter the shadow becomes. If not specified, its value is 0 and the shadow border is darker. It can be expressed in pixels (px), percentage (%), viewport width (vw), and viewport height (vh).



Spread

Positive values will cause the shadow to expand and grow bigger, while negative values will cause the shadow to shrink. If not specified, its value is 0 and the shadow will have the same size as the element.



Color

Defines the color of the shadow.



Transparency

Defines the transparency of the shadow.
