Object States
States indicate the stage of development in which Deyel objects are and if they are operational.
The following Deyel objects defined in applications have states:
•Form
•Agile Form
•Process
•Rule
•Dashboard
•Widget
•Value List
•Adapter
•Report

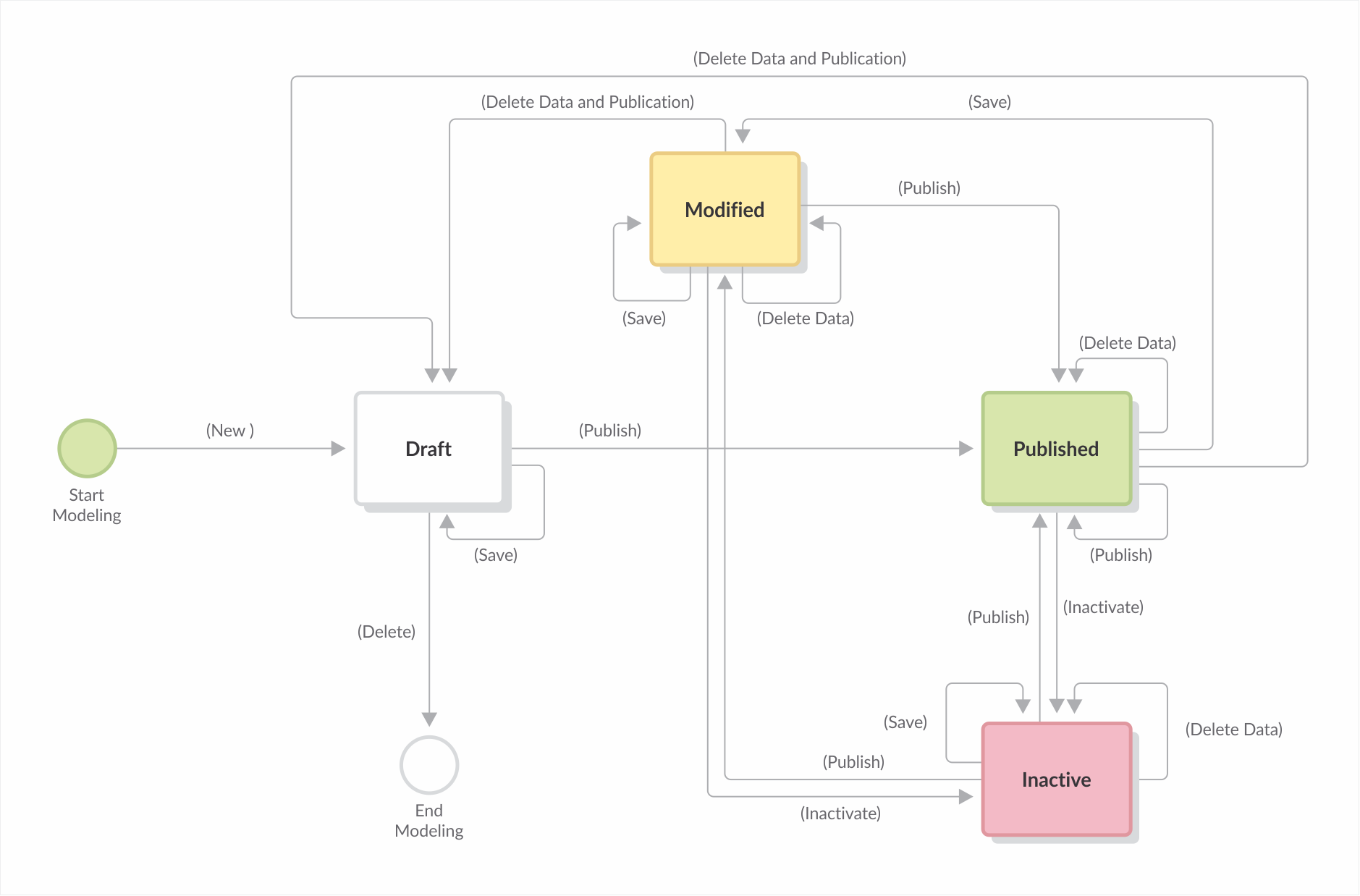

The possible states and the events that produce transitions among them are described below, ensuring the modelers of predictable behavior for each type of object.
Possible States
Draft
State corresponding to the beginning of the modeling or when it was saved but not published.
Published
State of the object once published, that is, it is available for use.
Modified
If an object is modified when it is in the "Published" state, it becomes "Modified".
Inactive
State corresponding to a published object for which only instances or cases can be shown.
As of processes, forms and agile forms, instances or cases of objects that are in this state cannot be created, delete or modified. On the other hand, rules can move to inactive state, if they are not being used in another object, that is, since they are inactive, they cannot be used in the modeling of another object.
Available in future versions.
