Cases
The model class contains properties with their getters and setters, while the service class contains operations to be performed on the model.
For example, when downloading the Java sources of the process, if using the "Request Payment" process, a requestPayment.java file is generated with the model methods and also another requestPaymentService.java file with the available service operations.
Model Class Content
A case model contains:
•Model constructor.
•Getters and setters of the case properties.
•Getters to get the related forms.
•Getters to get the activities in progress.
•Getters to get the process corresponding to the case.
Getters and setters of the case properties
The case model class contains a set of getters and setters for the case properties.
Operation |
Description |
Parameters |
|---|---|---|
getCdCase() |
Gets the identifier of the case. |
|
setCdCase(casenumber) |
Allows to set the case identifier value. |
String casenumber: Case number |
getCdState() |
Gets the state of the case.
Possible values: ACTIVE - Active CANCELLED Cancelled ENDEDCASE - Ended |
|
getDsCase() |
Gets the description of the case. |
|
getDtEnded() |
Gets the end date of the case. |
|
getDtExpiration() |
Gets the expiration date of the case. |
|
getDtInitiated() |
Gets the start date of the case. |
|
getPriority() |
Gets the priority of the case.
Possible values: 1 - Urgent 2 - High 3 - Medium 4 - Low |
|
setLastPressedButton(button) |
Allows to set the last button pressed. |
String button: Name of the last button pressed. |
getLastPressedButton() |
Gets the last button pressed. |
|
get + <Nombre de la clase del formulario> + Entity() |
Gets an instance of the form class related to the process. |
|
getLsVinculatedForms() |
Gets a list of form instances related to the case. |
|
getVinculatedFormByIdEntity(idEntity) |
Gets a form instance related to the case. |
String idEntity: Identifier of the form instance |
getProcess() |
Gets the process corresponding to the case. |
|
getLsExecutedActivities() |
Gets the executed activities of the case. |
|
getLsCurrentActivities() |
Gets the activities in progress of the case. |
Getter to get the related forms
Given a case, the values of the form fields related to it can be used, in the same way as if the activities were executed manually.
The model class has a getter for each form related to the process, with a “get + <Nombre de la clase del formulario> + Entity()” structure. Once an instance has been retrieved, it is used in the same way as for forms.
Example
If the "Request Payment" process related to the "Payment" and "Report" forms is modeled, the RequestPayment class has the following methods:
•getPaymentEntity(): Gets an instance of the Payment class that corresponds to the "Payment" form related to the case.
•getReportEntity(): Gets an instance of the Report class that corresponds to the "Report" form related to the case.
The case cannot have forms associated with the same class name, even if they belong to different applications.
Getters to get the activities in progress
Given a case, the list of its activities in progress can be accessed, using the getLsCurrentActivities() case properties method of the model class, which gets a list of "ExecutedActivity" objects with their methods.
Operation |
Description |
Parameters |
|---|---|---|
getCdActivity() |
Gets the code of the activity. |
|
getDsNameActivity() |
Gets the activity name. |
|
getCdState() |
Gets the state of the activity.
Possible values: EXEC - In execution CANCELLEDACT - Cancelled ENDEDACT - Ended |
|
getPriority() |
Gets the activity priority.
Possible values: 1 - Urgent 2 - High 3 - Medium 4 - Low |
|
getDtEnded() |
Gets the end date of the activity. |
|
getDtExpiration() |
Gets the expiration date of the activity. |
|
getDtInitiated() |
Gets the start date of the activity. |
|
getCdUserExec() |
Gets the code of the user that executed the activity. |
|
getCdUserInit() |
Gets the code of the user that started the activity. |
|
getNuDurationSeconds() |
Gets the duration in seconds of the activity execution. |
|
getTpActivity() |
Gets the activity type.
Possible values: TP_GATEWAY - Gateway TP_STANDARD - Standard TP_ABSTRACT - Abstract |
|
getTpParticipant() |
Gets the type of participant for the activity.
Possible values: USER - User ORG_UNIT - Organizational Unit ROLE - Role THING - Userthing
|
|
getLsExecutedActions() |
Gets a list of actions executed by the activity. |
Getter to get the process corresponding to the case
A case process can be obtained through the getProccess() method of the model class, which returns an instance of the "Process" class with its methods.
Operation |
Description |
Parameters |
|---|---|---|
getCdProcess() |
Gets the code of the process. |
|
getCdVersion() |
Gets the version of the process. |
|
getIdApplication() |
Gets the application identifier of the process. |
|
getCdFirstActivity() |
Gets an Activity object with the first process activity, |
|
getDsComment() |
Gets the comment of the process. |
|
getDsDescription() |
Gets the description of the process. |
|
getDsName() |
Gets the name of the process. |
The service allows the following operations to be performed on the cases:
Operation |
Description |
Parameters |
|---|---|---|
startCase(case)
startCase(case, pressedButton)
startCase(case, pressedButton, user) |
Starts a case, executing the initial activity of the related process. Returns the code of the created case.
|
Case case: Model of the case to start. Related form fields must have values
Case case: Model of the case to start. Related form fields must have values
String pressedButton: Name of the button that is pressed to advance in the activity
Case case: Model of the case to start. Related form fields must have values
String pressedButton: Name of the button that is pressed to advance in the activity
String user: Code of the user that executes the activity. It must be specified when the participant responsible for the activity is a role |
startCase(case. moveCase)
startCase(case, pressedButton, moveCase)
startCase(case, pressedButton, user, moveCase) |
Starts a case, with the possibility of not executing the initial activity of the related process. Returns the code of the created case.
|
Case case: Model of the case to start. Related form fields must have values
Boolean moveCase: Configure with false value, to indicate that it does not have to execute the initial activity of the process
Case case: Model of the case to start. Related form fields must have values
String pressedButton: Name of the button that is pressed to advance in the activity
Boolean moveCase: Configure with false value, to indicate that it does not have to execute the initial activity of the process
Case case: Model of the case to start. Related form fields must have values
String pressedButton: Name of the button that is pressed to advance in the activity
String user: Code of the user that executes the activity. It must be specified when the participant responsible for the activity is a role
Boolean moveCase: Configure with false value, to indicate that it does not have to execute the initial activity of the process |
execute(case)
execute(case, user) |
Executes the current activity of a case. Returns the state of the updated case. |
Case case: Model of the case with assigned case number
Case case: Model of the case with assigned case number
String user: Code of the user that executes the activity. It must be specified when the participant responsible for the activity is a role |
execute(case,activity)
execute(case,activity,user)
|
Executes the activity of a case indicated in the parameter. Returns the state of the updated case.
|
Case case: Model of the case with assigned case number
ExecutedActivity activity: Activity retrieved from the list of activities in progress of the case
Case case: Model of the case with assigned case number
ExecutedActivity activity: Activity retrieved from the list of activities in progress of the case
String user: Code of the user that executes the activity. It must be specified when the participant responsible for the activity is a role |
read(case) |
Reads a case. |
Case case: Model of the case with assigned case number |
cancelCase(case, observation) |
Cancels a case. |
Case case: Model of the case with case number to be cancelled. Cancellation is done with the online user executing the sdk rule
String observation: Reason for cancellation |
reassignCase(case, reassignUser)
|
Assignment of the task in execution of the case. |
Case case: Case model with case number assigned to the task
String reassignUser: Code of the user to whom the case task is assigned |
reactivate(case) |
Reactivate a canceled case. |
Case case: Model of the case with case number to be reactivated. |
Examples of Use
The examples use the “Request Payment” process and each example contains the use of the “RequestPayment” model class and the “RequestPaymentService” service class.
In addition, “Request” and “Report” classes are used, which represent models of forms related to the “Request Payment” process.
The examples detail how to start a case, read it, execute and assign its activities, finish it and cancel it.

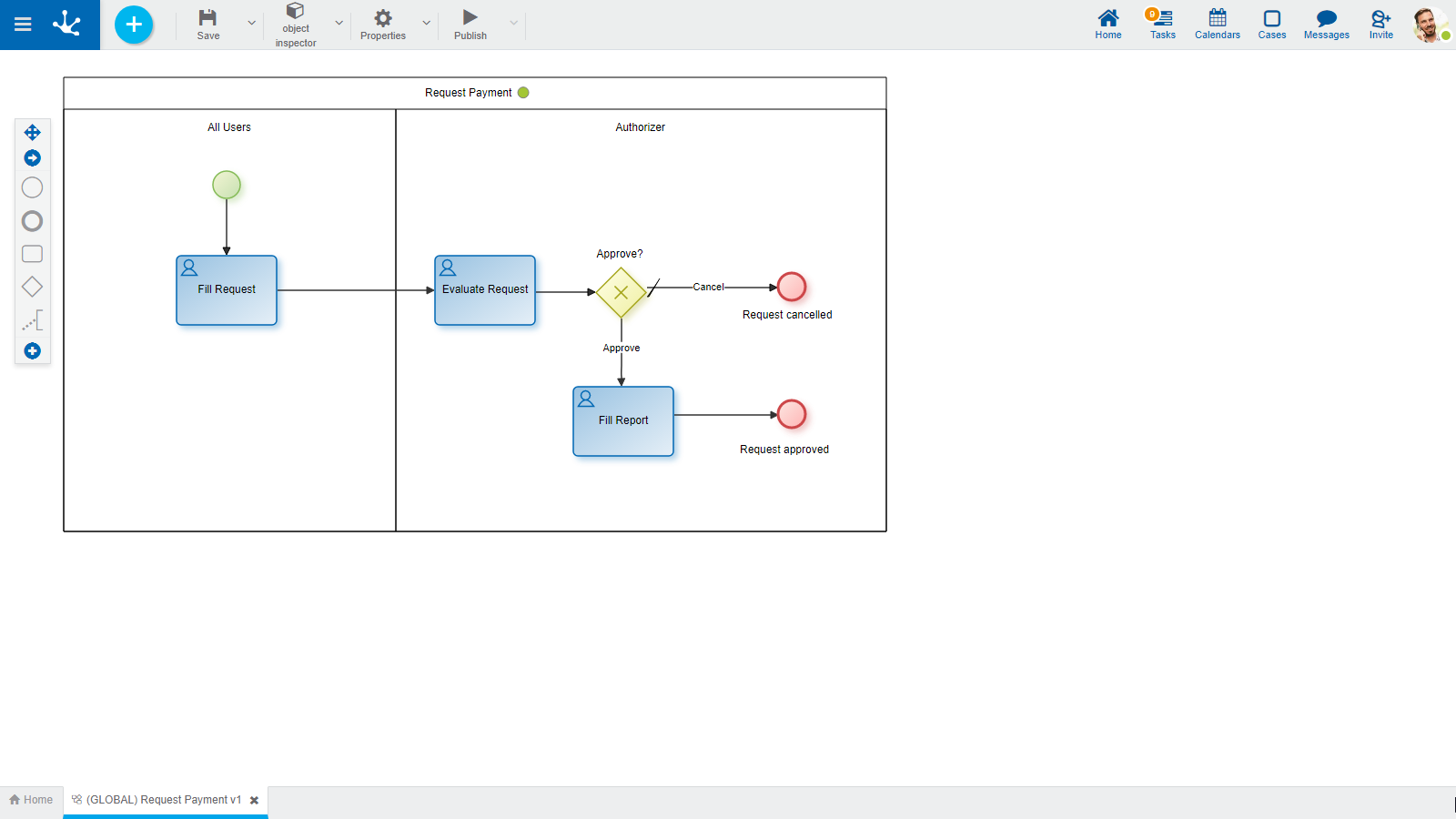

Process Diagram for Examples 1 to 7
1.Starting a case
To start the case, the first activity "Fill Request" is executed. The case moves to the “Evaluate Request” activity under the liability of “Afarias” user, configured in the “Authorizer” lane.
Executing the “Fill Request” activity performs the “Create” operation on the “Request” form with the values assigned to its fields.
An instance of the "RequestPayment" model class is created, in the "Request" form obtained through the getRequestEntity() method, values are assigned to its fields with the corresponding setters. The case is started using the "RequestPaymentService" service class with the startCase(myFirstPaymentCase) method.
RequestPayment myFirstPaymentCase = new RequestPayment(); myFirstPaymentCase.getRequestEntity().setAmount(new Double(200));
SimpleDateFormat format = new SimpleDateFormat("yyyy-MM-dd"); myFirstPaymentCase.getRequestEntity().setDueDate(new Date(format.parse("2020-06-28").getTime())); myFirstPaymentCase.getRequestEntity().setMessage("This is my first payment request .. i need to buy more coffee !!");
RequestPaymentService myService = new RequestPaymentService(getApiClient()); String cdCase = myService.startCase(myFirstPaymentCase);
|
2.Starting a case without executing the first activity
The process of Example 1 is used.
The case starts using the “RequestPaymentService” service class with the startCase(case.moveCase) method with the second parameter set to false so that it does not execute the first activity “Fill Request”.
RequestPaymentService myService = new RequestPaymentService(getApiClient()); String cdCase = myService.startCase(myFirstPaymentCase,false);
|
3.Reading the case
An instance of the “RequestPayment” model class is created, it is assigned a case number generated by the startCase(myFirstPaymentCase) method of the “RequestPaymentService” service class, in the previous example.
The case is read with the read(myFirstPaymentCase) method of the "RequestPaymentSercice" service class and the case number.
RequestPayment myPaymentCase = new RequestPayment(); myPaymentCase.setCdCase(cdCase); myPaymentCase = myService.read(myFirstPaymentCase);
|
4.Activity execution that defines modeled buttons
The case is in the “Evaluate Request” activity, which has two modeled buttons. The next activity to be executed depends on the button selected, in this example “Approve” is selected. If no button is specified, the modeled flow is followed as default.
The “Approve” button is assigned to the “Request Payment” model class using the corresponding setter. The “Evaluate Request” activity is executed with execute(myPaymentCase) method of the “RequestPaymentService” service class.
As a result, the case is in the “Fill Report” activity and its state is “ACTIVE”,
myPaymentCase.setLastPressedButton("Approve"); myService.execute(myPaymentCase);
|
5.Activity execution not defining modeled buttons
The case is in the “Fill Report” activity. This activity execution creates the “Report” form. This form has a field called "request" that is related to the "Request" entity.
The “request” field is completed by means of the corresponding setter, with the identifier of the “Request” entity related to the case, which is obtained by means of the getRequestEntity() method.
The rest of the fields are completed and the “Fill Report” activity is executed with the execute(myPaymentCase) method of the “RequestPaymentService” service class.
The case is sent to the “Request approved” end event and its state is ended.
Integer requestId = myPaymentCase.getRequestEntity().GetRequestId();
myPaymentCase.getReportEntity().setRequest(requestId.toString()); myPaymentCase.getReportEntity().setPaymentMethod("Credit"); myPaymentCase.getReportEntity().setSummary("Filling the report using the SDK."); myService.execute(myPaymentCase);
|
6.Cancellation of a case
An instance of the “RequestPayment” model class is created, it is assigned the case number to be canceled.
The cancellation reason is entered in the “observation” parameter and the case is canceled with the cancelCase(myPaymentCase, observation) method of the “RequestPaymentService” service class.
RequestPaymentService myService = new RequestPaymentService(getApiClient()); RequestPayment myPaymentCase = new RequestPayment(); myPaymentCase.setCdCase("0000000091120000"); myService.cancelCase(myPaymentCase,"Duplicate case");
|
7.Assignment of the case task in execution
An instance of the “RequestPayment” model class is created, indicating the case number to which the task is assigned.
The user code is entered in the "reassignUser" parameter and the task is assigned with the reassignCase(myPaymentCase, reassignUser) method of the "RequestPaymentService" service class.
When the task of a case is assigned, the online user that executes the sdk rule is used. This user can assign their own tasks, those of their team and those of the participants of a role, if they were their coordinator.
RequestPaymentService myService = new RequestPaymentService(getApiClient()); RequestPayment myPaymentCase = new RequestPayment(); myPaymentCase.setCdCase("0000000091120000"); myService.reasignCase(myPaymentCase,"JPEREZ");");
|
8.Reactivation of a canceled case
An instance of the “RequestPayment” model class is created, and the canceled case number is assigned to it.
The case is reactivated with the reactivate(myPaymentCase) method of the “RequestPaymentService” service class.
RequestPaymentService myService = new RequestPaymentService(getApiClient()); RequestPayment myPaymentCase = new RequestPayment(); myPaymentCase.setCdCase("0000000091120000"); myService.reactivate(myPaymentCase);");
|

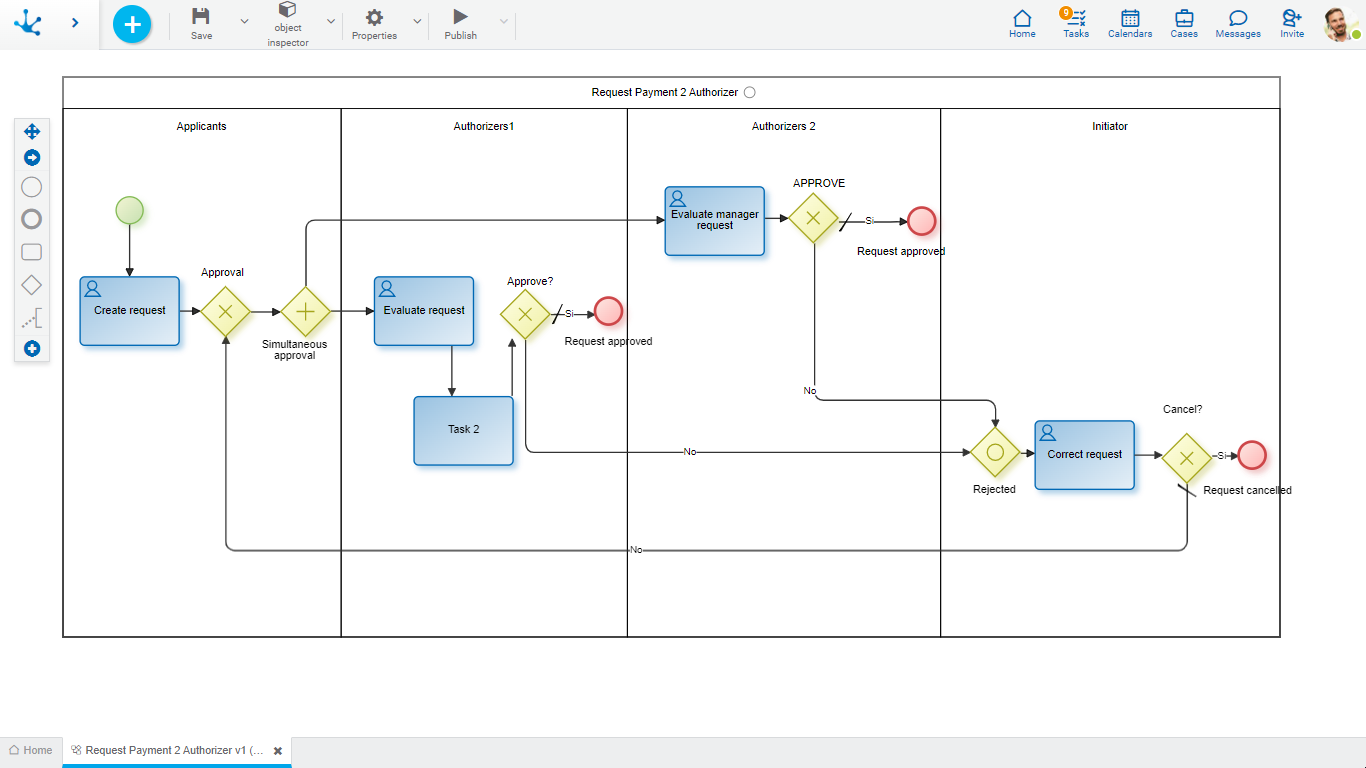

Process Diagram for Example 9
9.Execution of a specific activity
Activities "Evaluate request" (9) and "Evaluate manager request" (11) are sent to be evaluated by two authorizers.
Activity "Evaluate manager request" (11) is executed. JPAZ user is the authorizer and rejects the activity in this case.
An instance of the “RequestPayment2Authorizer” model class is created, a case number to be read is assigned.
The case is read with the read(xMyCase) method of the "RequestPayment2AuthorizerSercice" service class and the case number.
Every activity in progress is retreived with the getLsCurrentActivities() method and an ExecutedActivity object is instantiated.
If the activity is "Evaluate manager request" (11), the “Reject” button is assigned through the corresponding setter and the activity is executed with the execute(xMyCase. xActivity, user) method of the “RequestPayment2AuthorizerService” service class.
RequestPayment2AuthorizerService xRequestPaymentService = new RequestPayment2AuthorizerService(getApiClient()); RequestPayment2Authorizer xMyCase = new RequestPayment2Authorizer();
xMyCase.setCdCase(idCase); xMyCase = xRequestPaymentService.read(xMyCase);
for (int i = 0 ; i < xMyCase.getLsCurrentActivities().size(); i++){ ExecutedActivity xActivity = xMyCase.getLsCurrentActivities().get(i);
if (xActivity.getCdActivity()== 11 [);i () xMyCase.setLastPressedButtom("Reject"); xRequestPaymentService.execute(xMyCase, xActivity, "JPAZ" ); } } } |
Search
Case searches of a process can be performed through the interaction of the following objects.
Criteria: represents search criteria on case data. It is made up of elements that can be properties and values, connected by operators.
Property Identifier |
Description |
|---|---|
Case.searchCdState |
Case state |
Case.searchPriority |
Case priority |
Case.searchDsCase |
Case description |
Case.searchDtInitiated |
Case start date |
Case.searchDtEnded |
Case end date |
Case.searchCdActivity |
Activity code |
Case.searchCdCase |
Case number |
Operator |
Description |
|---|---|
eq |
Equal |
gt |
Greater |
lt |
Less |
betweene |
Between and admits equals |
like |
Contain |
Possible values of the case state:
Identifier |
Description |
|---|---|
Case.stateActive |
Active |
Case.stateCancelled |
Cancelled |
Case.stateEnded |
Finalized |
Possible values of the case priority:
Identifier |
Description |
|---|---|
Case.priorityUrgent |
Urgent |
Case.priorityHigh |
High |
Case.priorityMedium |
Medium |
Case.priorityLow |
Low |
SearchCriteria: an object that groups search criteria (Criteria object), it also allows parameterizing the order of the result, the size of the reading page, and the number of pages to be retrieved. Reading by pages is used since the data volume on a process can be very large.
Process Service: service class of the process on which the case search is being carried out. Contains the search(searchCriteria) operation that must receive the SearchCriteria object as a parameter and returns the SearchResult object.
Example:
SearchResult searchResult = actionsService.search(searchCriteria);
SearchResult: object that contains the search results. Contains a list of the process cases, for example “Actions”. This object allows to know the total number of reading pages resulting from the search, the size of each page, and the number of pages to retrieve.
Search Examples
1. Search
This example retrieves a list of cases from the “Actions” process with an active state, where the state property corresponds to the “Case.searchCdState” identifier and the active value corresponds to the “Case.stateActive” identifier. The number of pages to retrieve is also defined.
AccionesService xaccionservice = new AccionesService(getApiClient()); SearchCriteria searchCriteria = new SearchCriteria(); |
2. Constructor types for search criteria
This example creates a Criteria object and defines different search conditions using the "between and admits equals", "contains" and "greater" operators.
// Between and admits equals. Dates must be in year-month-day format. // SearchCriteria searchCriteria = new SearchCriteria(); // SimpleDateFormat format = // // searchCriteria.addCriteria(criteria Date);
|
Deyel uses the data type java.sql.Date for "date" type fields, so the transformation from java.util.Date to java.sql.Date must be done, when it is required to create an object with this type of data.
3. Operations on the results object
The SearchResult object is iterative and as such, it can be scrolled through in different ways.
The example uses a FOR statement to iterate over the cases that meet the search conditions of example 1 (active state), retrieving the case start date and priority.
AccionesService xaccionservice = new AccionesService(getApiClient()); SearchCriteria searchCriteria = new SearchCriteria(); // Cases with active state Criteria criteria1 = Criteria.eq(Case.searchCdState,"ACTIVE"); searchCriteria.addCriteria(criteria1); searchCriteria.setPageSize(10); searchCriteria.setPage(1);
SearchResult searchResult = xaccionservice.search(searchCriteria);
List <Case>instancesResult = searchResult.getResult(); // Loop through the list of cases String log = ""; for (Case cases :instancesResult){ log = cases.getDtInitiated() +" - "+ cases.getPriority(); }
|
