When using the form, the user visualizes the form fields, according to the properties modeled for the different types of fields. Each of them has been included in the form from the controls bar.

Types

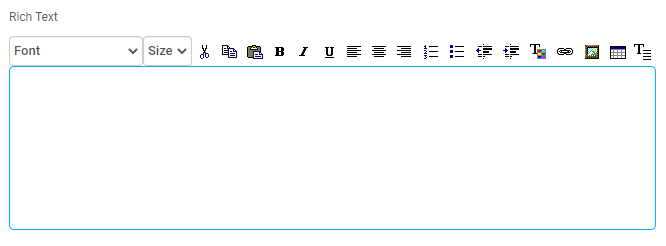

Rich Text



The rich text type control has an area for entering and modifying the text and different styles can be used. The font size, as well as applying underlining, bold and colors, among other options can be changed.



n-UsoDeyelControlesCampoTextoEnriquecido

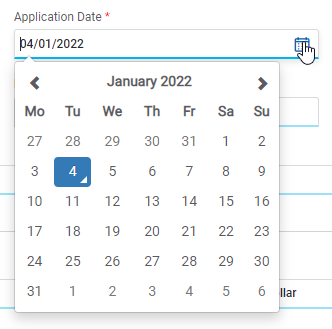

Date Picker



A date picker becomes visible when using a date type control. It allows to select the day, month and year, easily completing the field.



C00017~1_img30

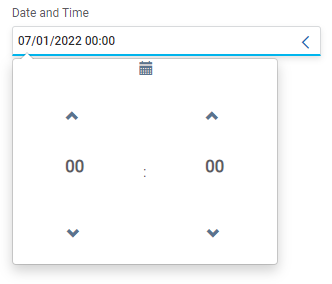

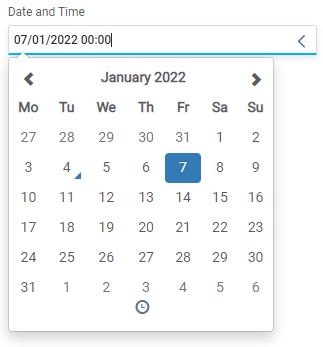

Date and Time Picker



A date and time picker becomes visible when using a date type control. It allows to select the day, month and year, easily completing the field.

Pressing the icon n_toolbar_hora allows to update hours and minutes. To return to date, press the icon n_toolbar_fecha.



n-UsoDeyelControlesCampoFechayHora1     n-UsoDeyelControlesCampoFechayHora2

Time Picker



A time picker becomes visible when using a time type control. It allows to select hours and minutes.



n-UsoDeyelControlesCampoHora




To enter an image into an image type control, use a picker that is in the lower right part of the image field. Pressing this picker opens a panel for selecting a file from the user's computer.



n-UsoDeyelControlesCampoImagen1

File



A file type control allows a file to be incorporated into the form from the user's computer or stored in Google Drive. If more than one file is to be incorporated, multiple occurrences should be modeled.



SELECC~1_img1



clip0003Open the window to select one or more files.

icon-mod-proc-d6768fffdfhjfdj Generate a new occurrence to attach files.

n-iconoMULTIPLES_OCURRENCIAS_ELIMINAR Delete a file occurrence.



Once a file has been entered, operations on it can be performed.



ARCHIV~1_img1



clip0003Replace the file by another one.

clip0001Download the file to your local computer.

clip0002Delete the file from the form instance.

Check



A check control represents logic information, being able to take "YES/NO" values. When the control is selected, the field takes a true value and its content is “YES”, otherwise it takes a false value and its content is “NO”.



CM0057~1_img1



It can be displayed in toggle format if the Display field property was modeled.



CM0057~1_img2

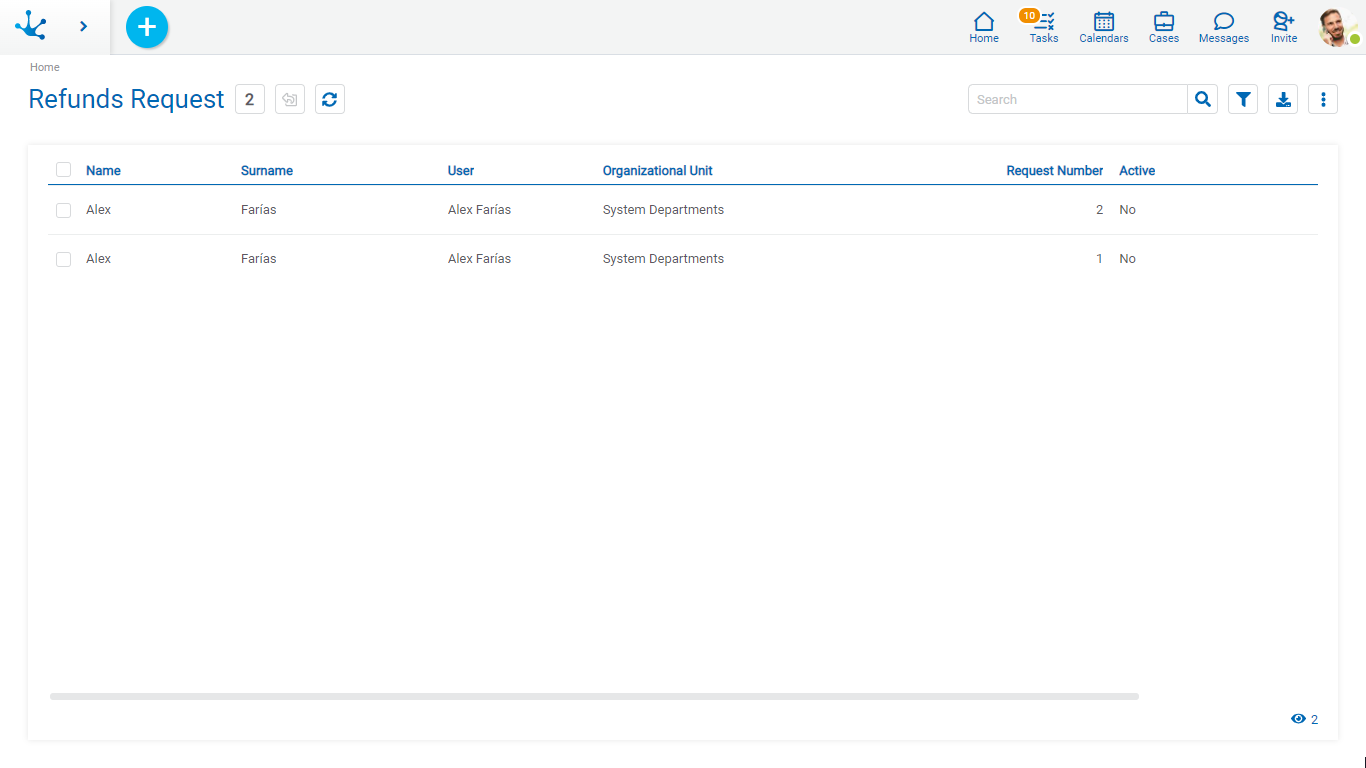

If the field is included in the results grid, its content is represented with “YES/NO” values in the corresponding column.





CM0057~1_img4

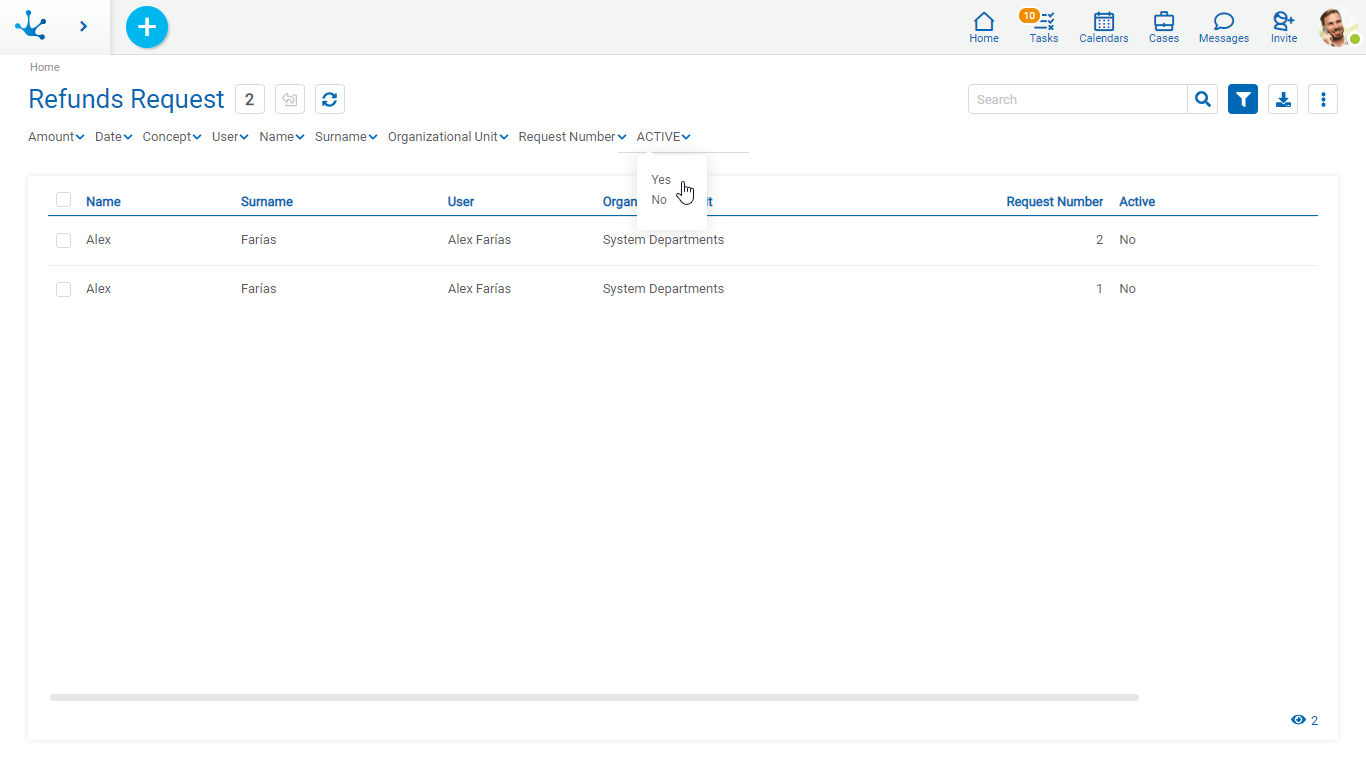

If it is used as a search filter, “YES/NO” values can be used.





CM0057~1_img3

Value List



The fields represented by this control propose the value list defined when modeling the field,



n-UsoListaValores
