Throw and Catch Link
The properties panel of the throw link and capture link intermediate events, is displayed on the right side of the process modeler.
Name
Text that is displayed in the diagram next to the graphic element of the event.

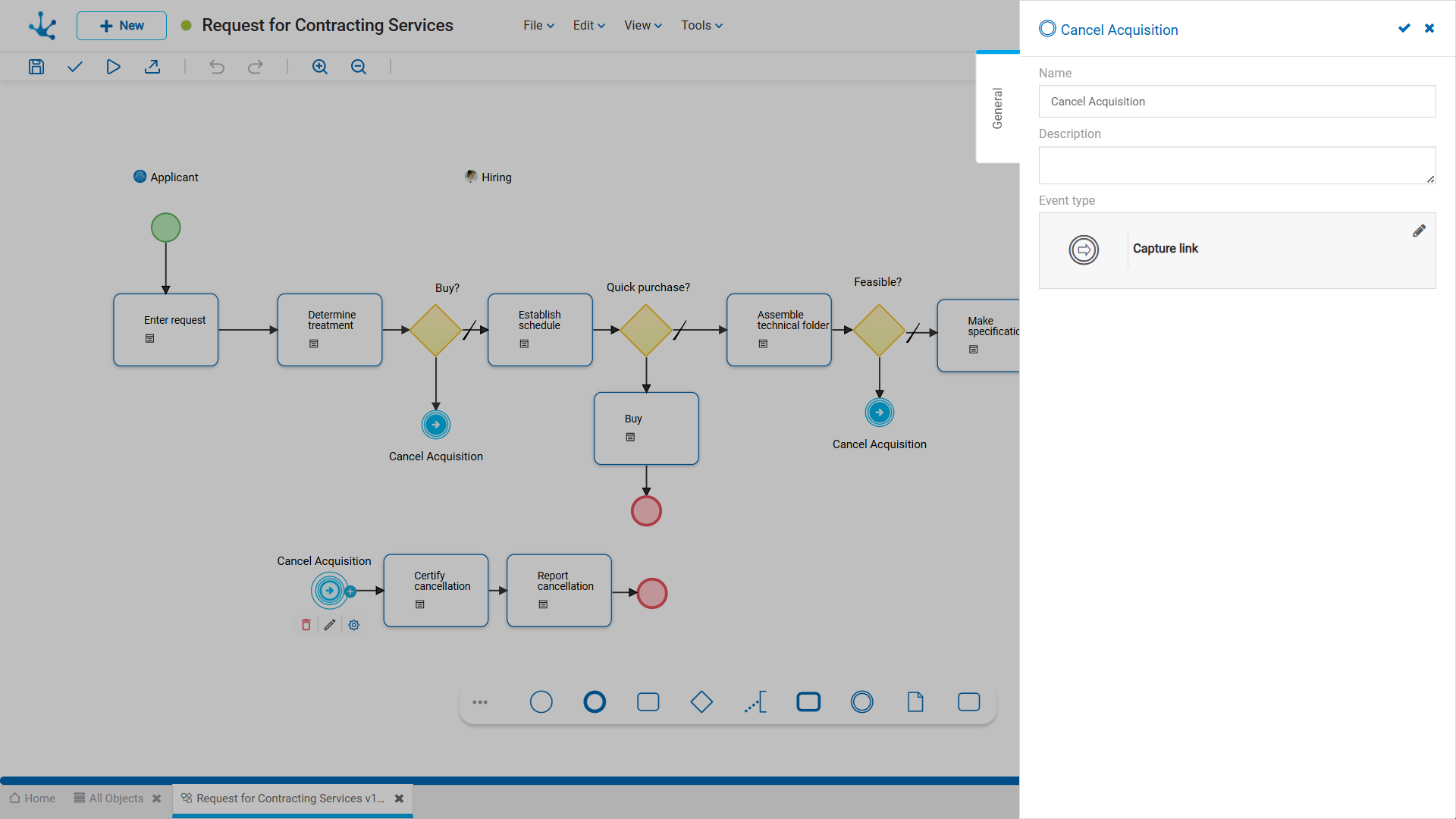

If it is a catch link event, it is also the identifier used to reach it, from the throw link event.
Description
Text that allows documenting detailed information about the event.

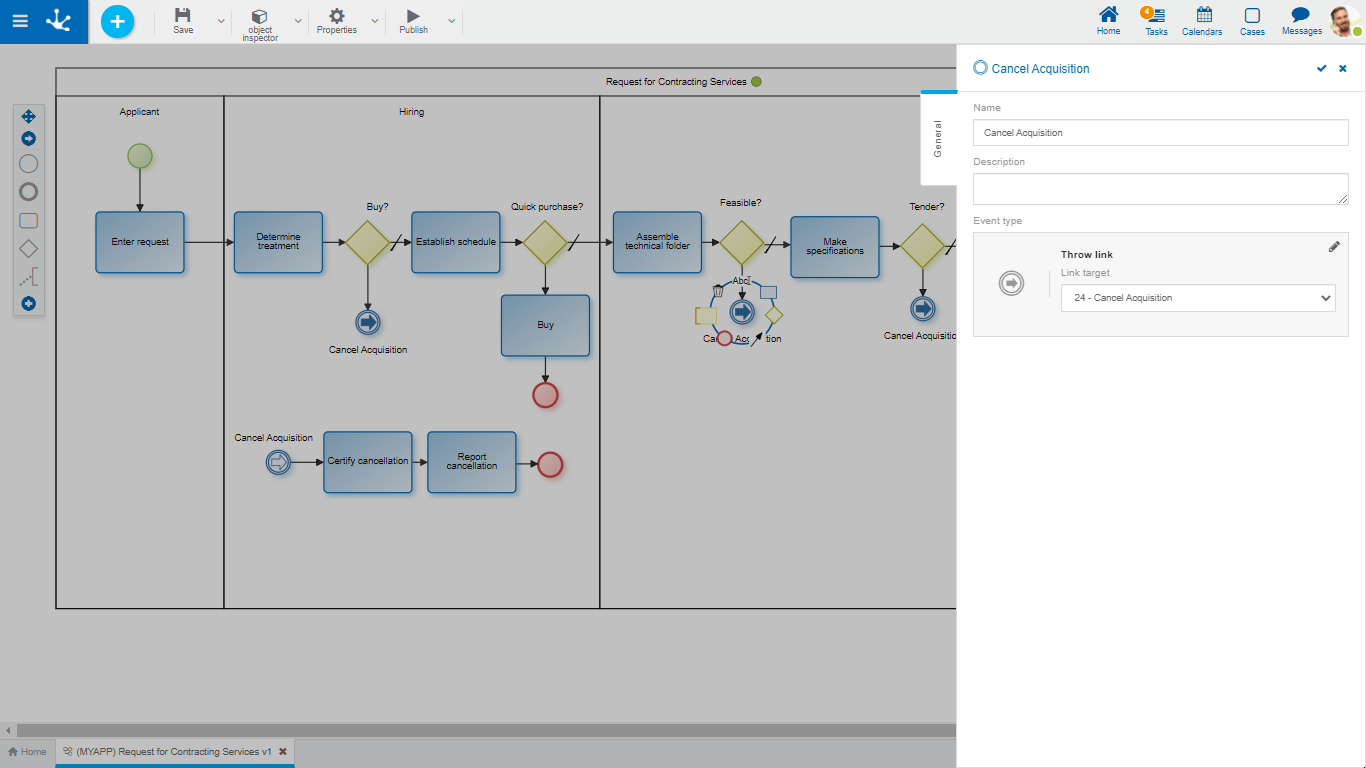

Link Destination
This attribute corresponds to the throw link event. Allows to select the event type catch link to go to.
Example of Use

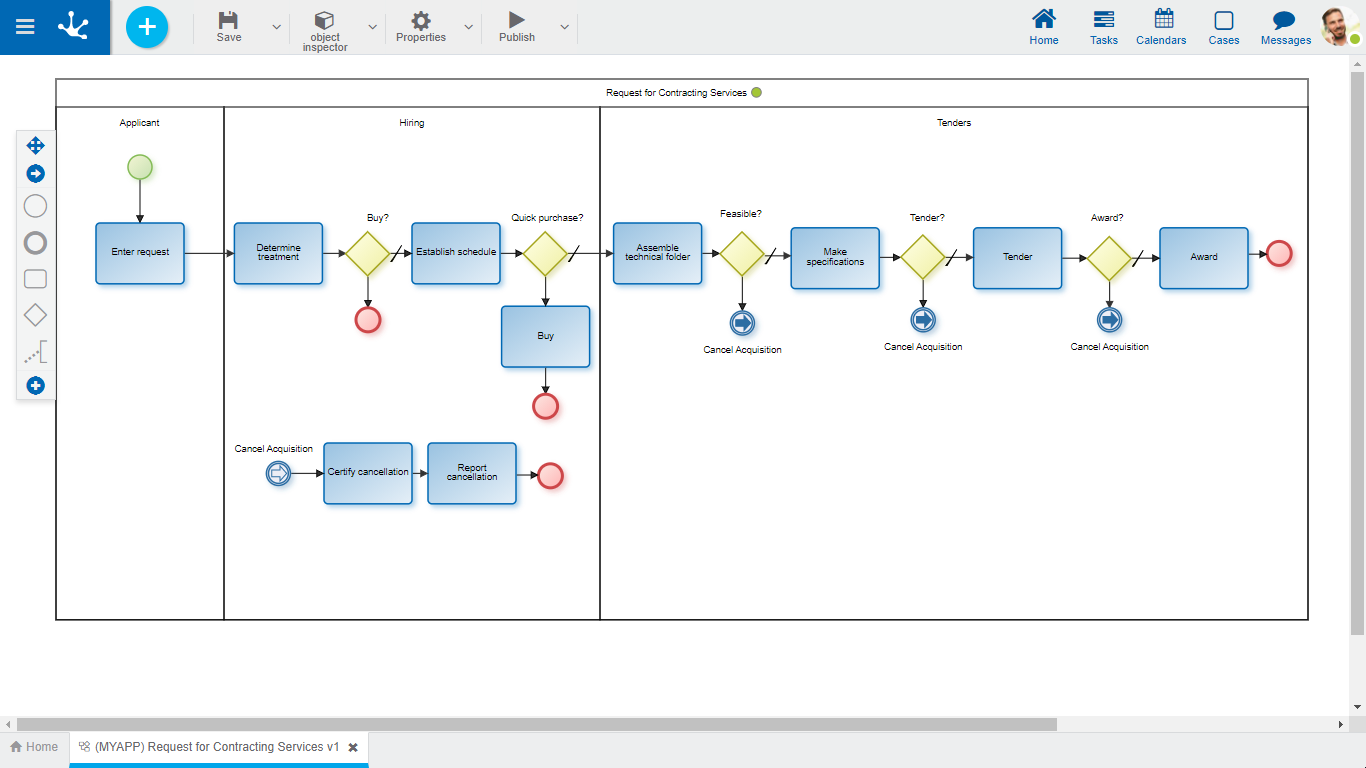

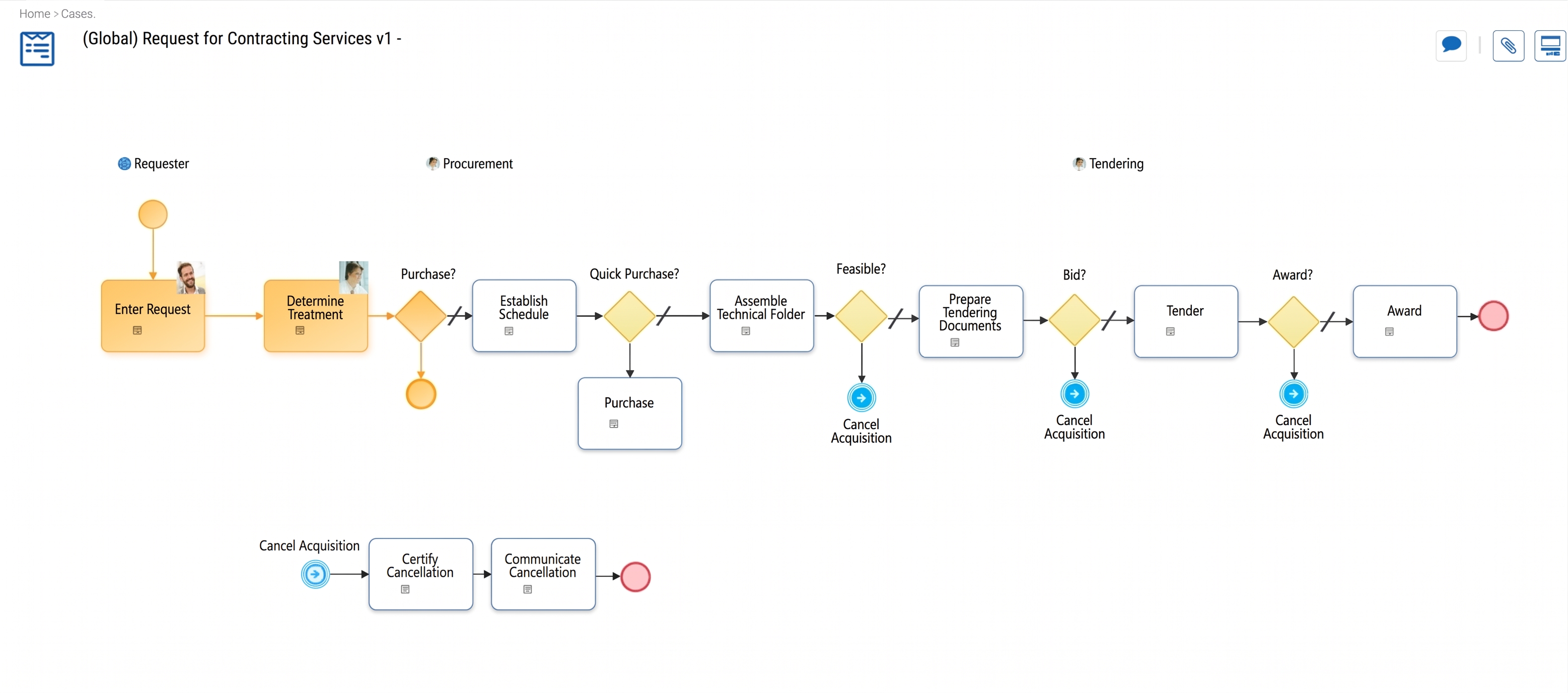

The "Request for Contracting Services" process, to facilitate its interpretation, presents several links to the "Cancel Acquisition" event. These events are particularly useful in complex diagrams.
