Rule
The properties panel of the start event by rule is displayed on the right side of the process modeler.
Properties
Name
Text that is displayed in the diagram next to the graphic element of the event.
It is recommended to inform a text in reference to the rule whose execution is expected.
Enabled
This property is checked to indicate that the event activates, waiting for the rule.
Priority
Execution priority assigned to the event. It is reported as an integer, being 0 the top priority.
Description
Text that allows documenting detailed information about the event.
Conditions
They are the conditions that must be met for the event to be executed. If there are defined conditions, a list of them is displayed.
To add a condition, press the icon
and from the panel that opens, select Property and Operator in the corresponding drop-down lists. Report Value and where applicable, indicate in Parameter the field to be evaluated of the form associated with the process.
Actions
They are the actions that are carried out automatically when the event occurs.
•Create Case
For all start events, a case is compulsorily created for the process and a version in which the event is executed.
•Attach file
Allows to attach a file to the case.
Parameter |
Description |
|---|---|
File to attach |
File attached to the case. |
Depends on the previous execution |
Indicates if the action is executed only when the previously defined actions were executed successfully.(*) |
Note: The parameters selected with (*) are mandatory.
•Attach form
Allows to relate a form to the case.
Parameter |
Description |
|---|---|
User Code |
If it is not reported, the current user is assigned. |
Values map |
Report <field1><value1><field2><value2>…, |
XML |
File path that contains the XML. |
Annex Type |
Annex type attached (*). |
Create version if it exists and if it is unique |
If when attaching the form, it already exists and is unique, a historical version of it is previously created. |
Reset previous form and it is unique |
Indicates that if there is a form associated with the case and it is unique, data is deleted from it. |
Depends on the previous execution |
The action is executed only if the previously defined actions were executed successfully.(*). |
Note: The parameters marked with (*) are mandatory.
Select scheduled rule task
The executed business rule is selected. It must be a previously published advanced rule.

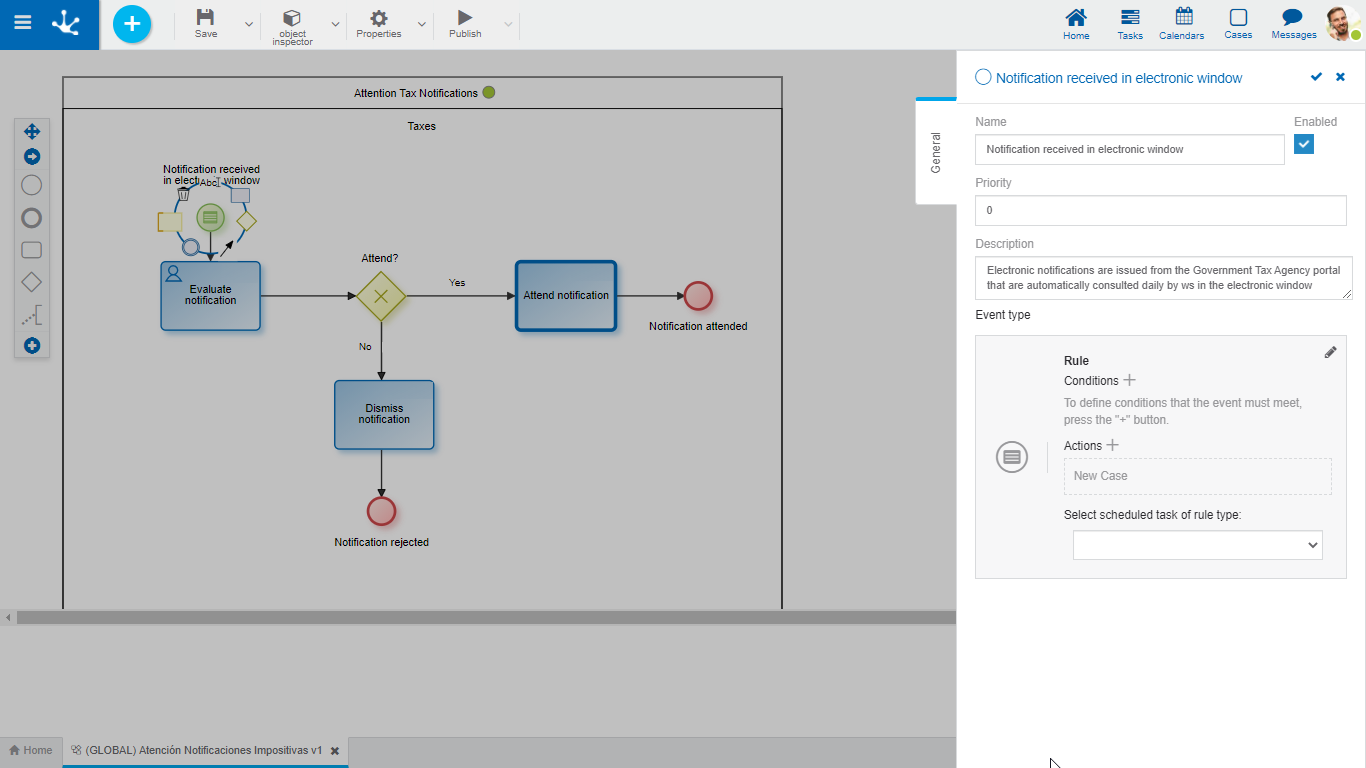

Example of Use
The "Attention to Tax Notifications" process starts automatically when the business rule associated with the rule start event detects a notification in the government portal, following the WS specifications published in it.
