Widgets of funnel type show values ​​in gradually decreasing proportions. In this type of charts the data is shown as a value for each stage.



To the properties shared by all the widgets are added those specific to funnels.



This chart type also incorporates stages modeling to identify each represented value and define its location.

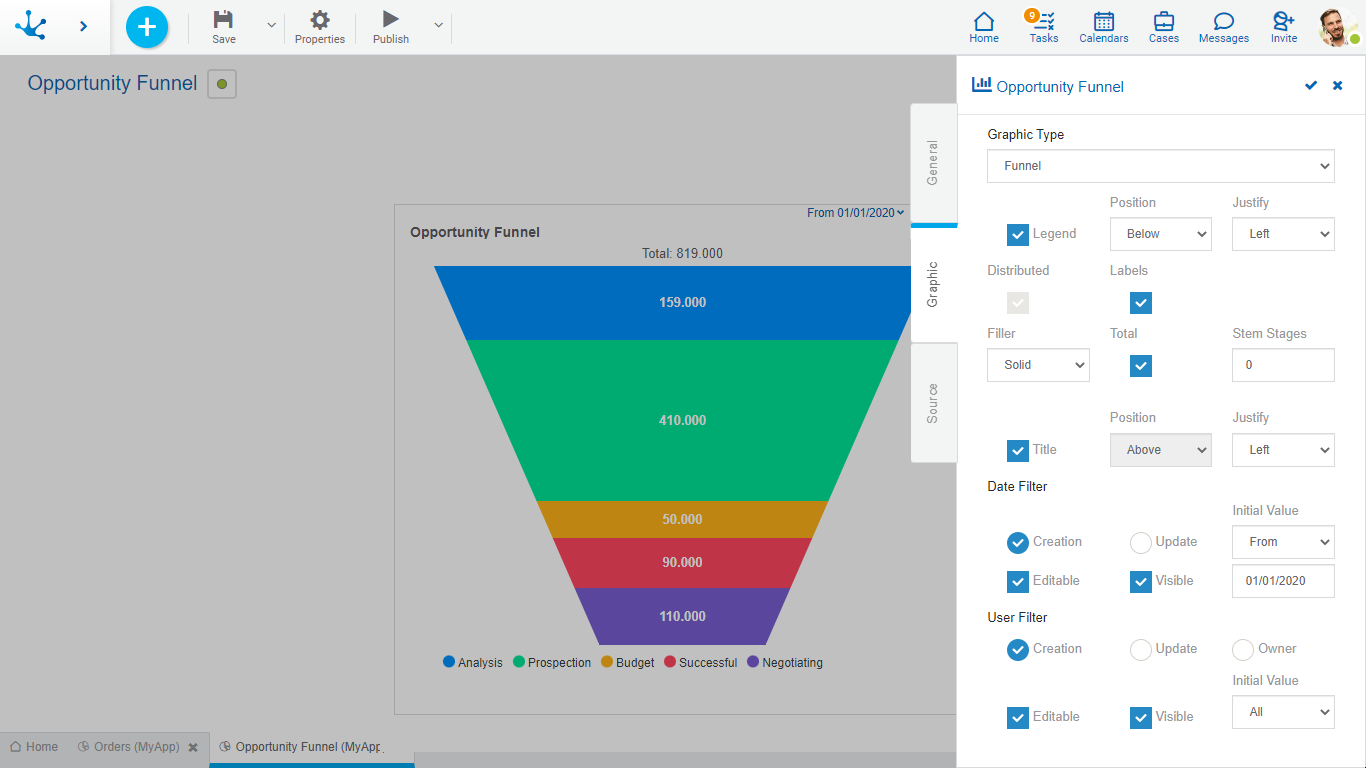

MI-Embudo-001

Properties



Legend

Indicates the entry of data series description.

If this property is selected, also indicate:

Position
Select above, below, left, right.

Justify
If above or below position is selected, it allows to justify right, center or left.

If right or left position is selected, the legend is displayed top right or left as indicated.



Distributed

Indicates whether the series are grouped or interleaved.



Labels
Allows to indicate whether the labels corresponding to the data series are displayed.



Filler

Allows to highlight the area of data series in a gradient or solid way.



Total

Indicates whether or not the total of all series is displayed.



Stem Stages

Indicates the number of stages or bars that are displayed in the stem of the funnel.

If this property is zero the stages are part of the funnel and it does not have a stem.

Example of Use

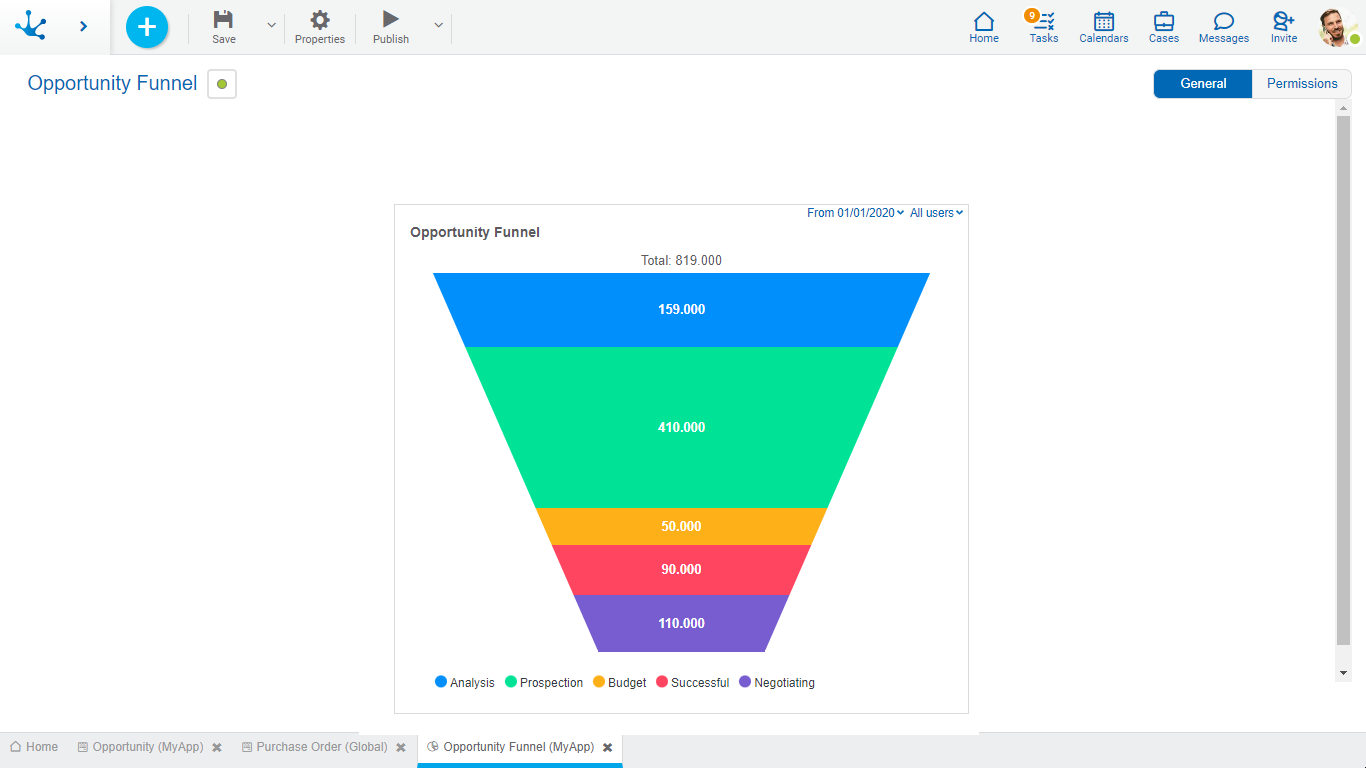

In this funnel widget the estimated total amount of CRM opportunities grouped by Sales stage is displayed, during a selected period and for the users indicated in the filter.





MI-EjemplodeUso-007

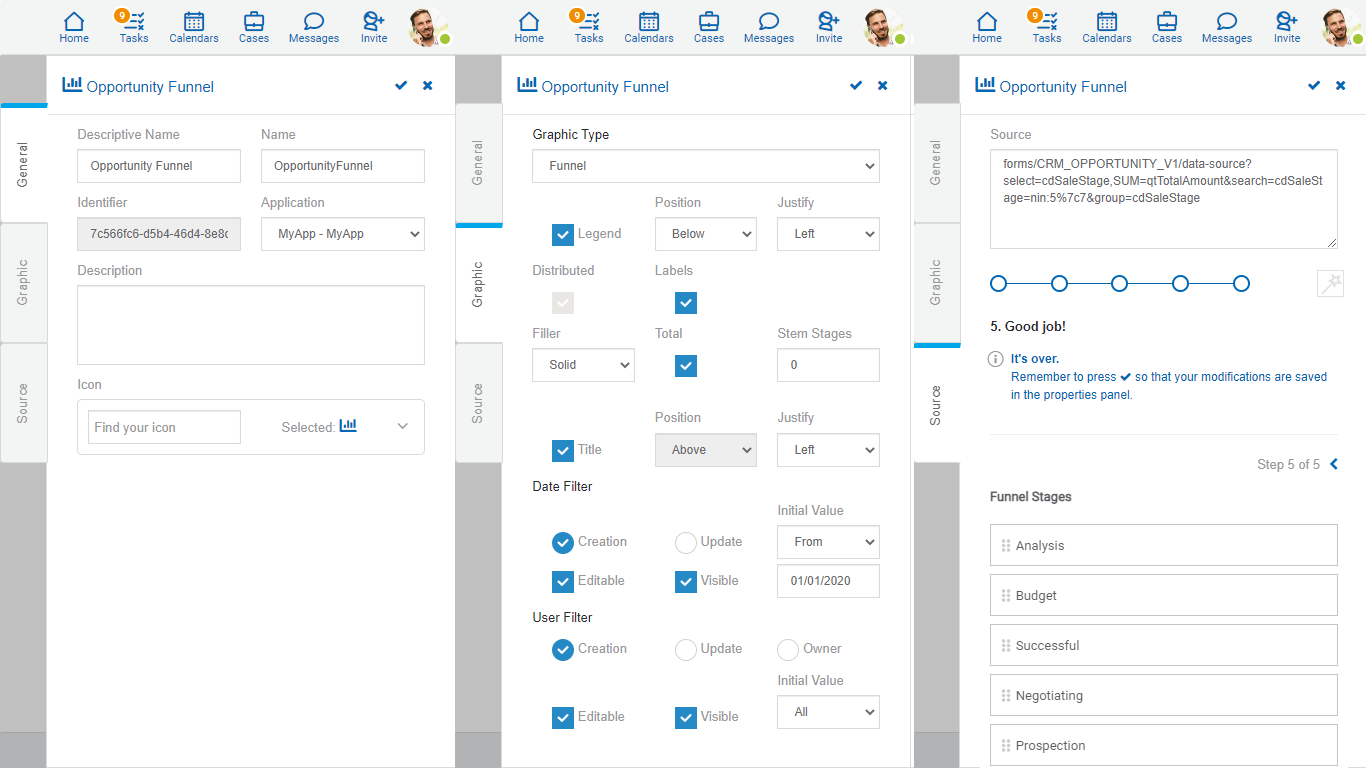

The source code to model this chart is detailed.





MI-Embudo-003

Steps of the Modeling Wizard





MI-PasosdelAsistente-013

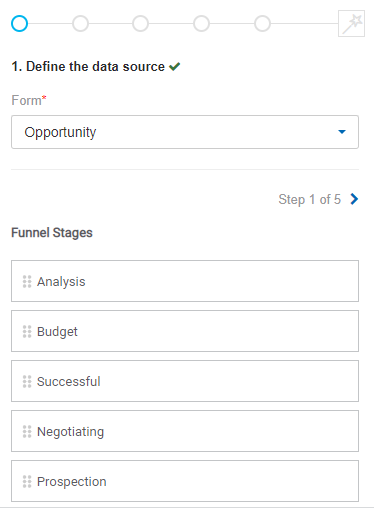

The "Opportunity" form is selected from which the data displayed in the chart is taken. And the order of the stages of the funnel is defined.





MI-PasosdelAsistente-014

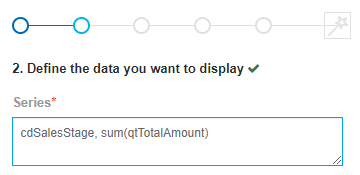

First the “cdSalesStage” field of the form visualized on each funnel stage is indicated. And finally the function "sum(qtTotalAmount)" is used to determine the total amount estimated for each stage.



In this step, the names of the fields must be used without the "description()" function, despite being values lists.





MI-PasosdelAsistente-015



The condition to display all opportunities is added, excluding the stages with numerical code “5” and “7” and descriptive text “Lost” and “Stand-By”.





MI-PasosdelAsistente-016

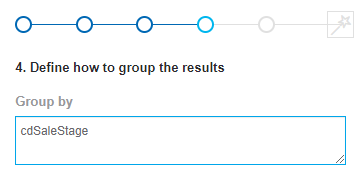

Grouping the results by the same form fields that were modeled in step 2 is defined.



In this step, the names of fields must be used without the "description()" function, despite being value lists.





MI-PasosdelAsistente-005

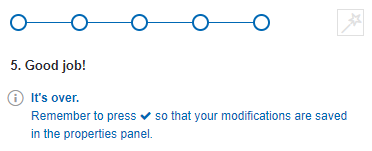

Step 5 reporting that all steps are met is completed .
