For inquiries of the security functions, it is possible access the functional structure from the menu of Deyel.
•From the optionConfiguration“, selecting “Security” and then “Security Functions”.
•From the option of menu search.
The security functions are identified from its property Descriptive Name and automatically generated when the objects. The visualization of such functions can be realized in the form of hierarchical view or as an object grid.

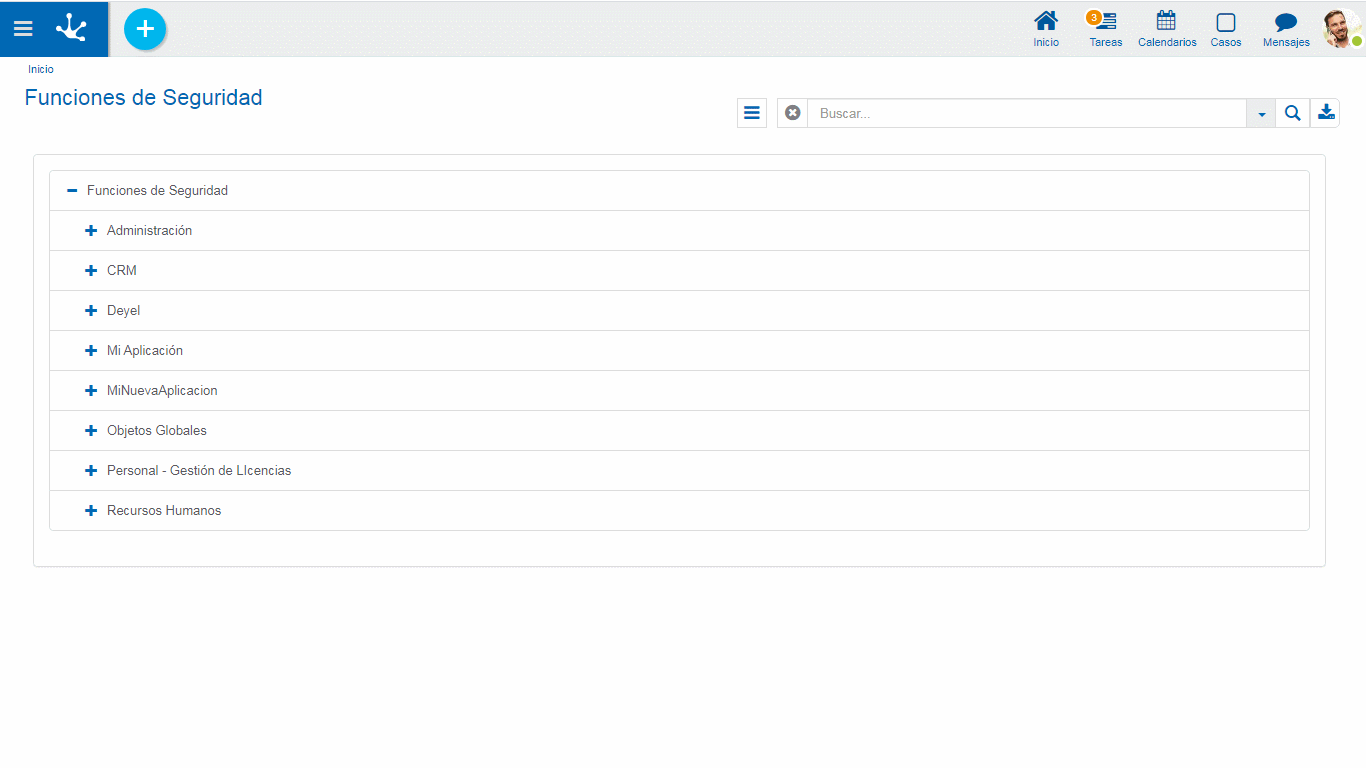

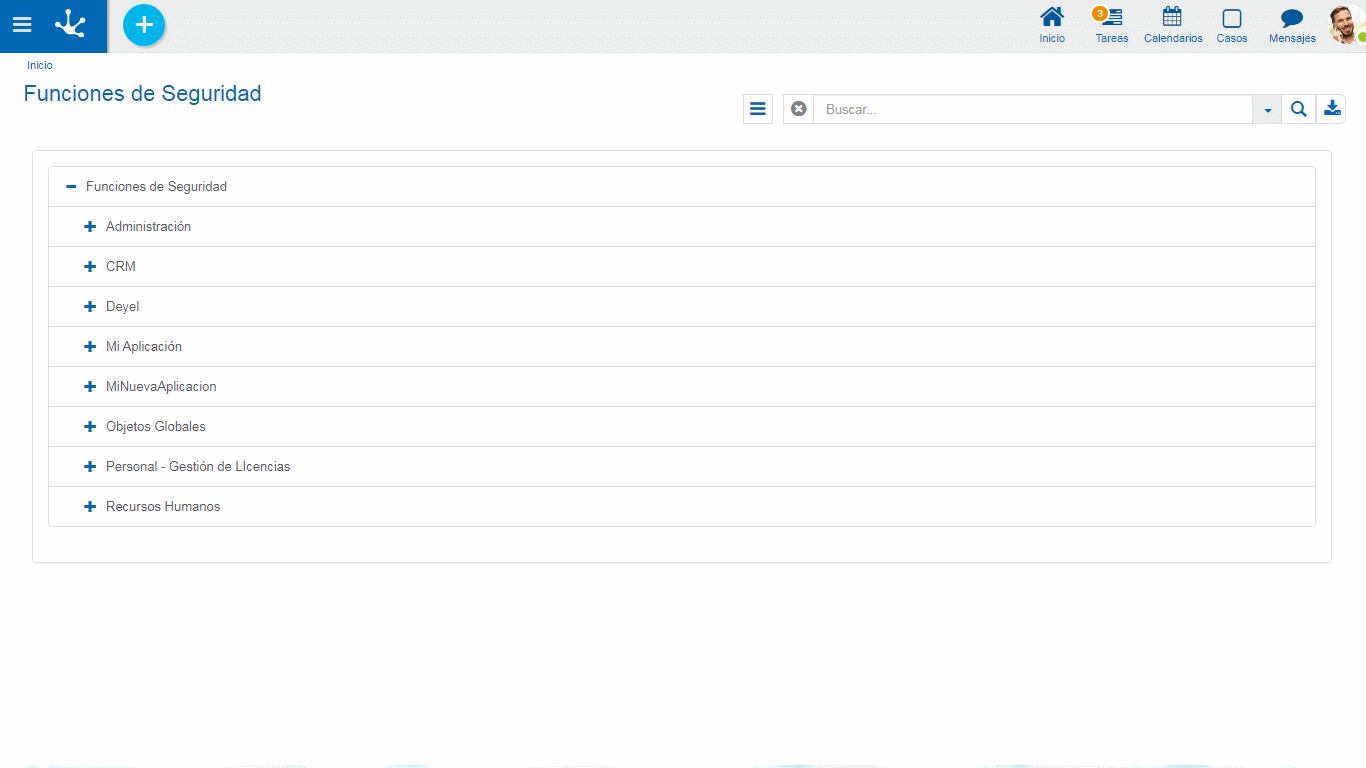

Hierarchical View
The father element, which name is the name of the application, is located as sublevel of the stop element “Security Functions” and depending on it the security functions of the application and its objects are visualized. For each modeled object, its corresponding modeling security functions and of use are created.
The icon
allows to change the visualization to grid mode.
Grid
The grid of security functions allows to visualize them in the same way as the objects in the Deyel modeler and in the results grid of user forms, with facilities of:
•Ordering
•Page
•Search Bar and Filters
•Data Download
The icon
allows to change the visualization to hierarchical view mode.
The number displayed on the right of the grid title, indicates the amount of security functions included in it.
The following properties of the security functions are visualized as columns of the grid:
•Name
•Descriptive Name
•Application
•Father Function
•Edition
•Type of License
•Code
Operations
From the hierarchical view and from the grid inquiries can be made. When hovering over each of the lines the button “Show” is visualized which allows to display all the properties of the selected security function.
